Typology
24V Strip LED.
Installation
Complete with 3M double-sided tape to attach to the surface.
When using double-sided tape degrease the application surface adequately.
Strips can be cut to size by following the cutting indications printed on the strips.
For IP65/IP68 strips, restore the IP protection after cutting.
Packaging
Packaged in 5 meters reels.
Colour of the light
RGB
Characteristic data
Dimensional characteristics

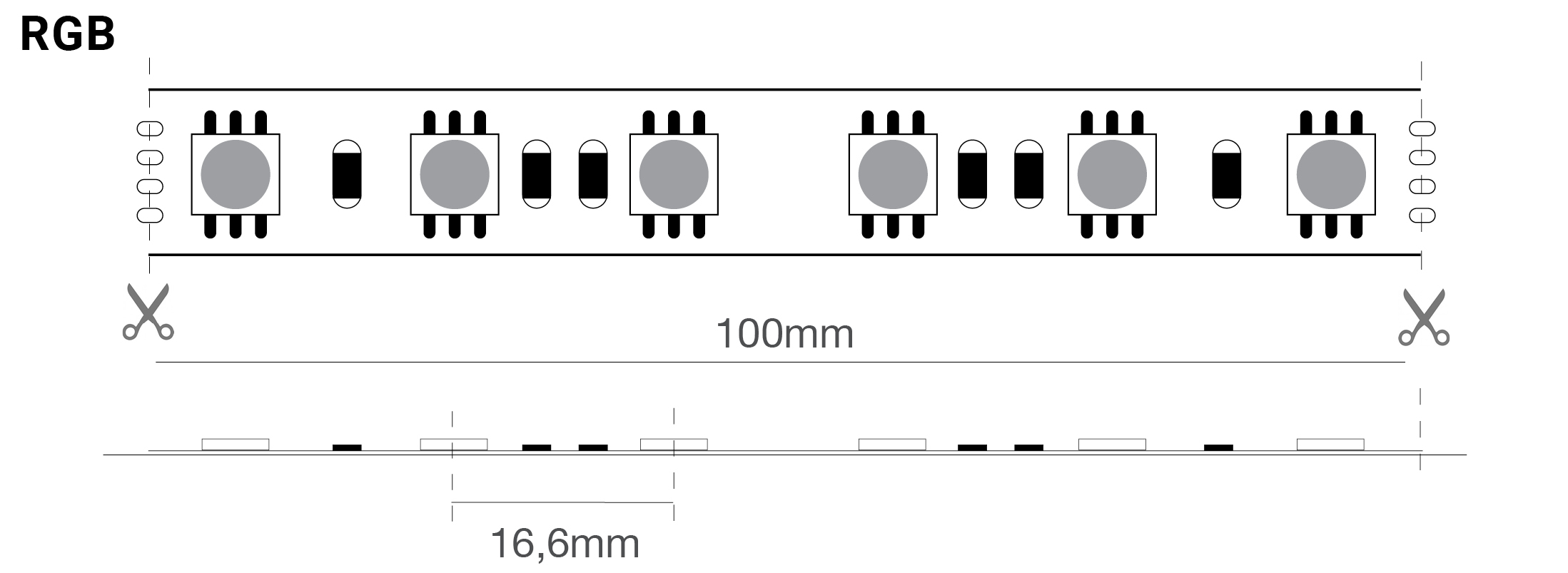

Cutting pitch
100 mm
LED pitch
16.6 mm
Lighting and photometric features
CCT nominal colour temperature
RGB
Heating time up to 60% of full efficiency
Instant Full Light
Electrical characteristics
Operating temperature
-25°C / +35°C
LED Warranty
G3
Up to 3 years
(4000h/year) *4000h = 11h a day x 365 days.
Without limitations on the duration of use for the first year, provided the observance of the installation conditions.
European Directives
2009/125/EC * Ecodesign
2011/65/EU * RoHS
2012/19/EU * RAEE
2014/30/EU * EMC
2015/863 * Amending RoHS
2017/1369 * Regulation for Energy Labelling
2019/2015 * Regulation for Energy Labelling
2019/2020 * Regulation for Ecodesign
2021/340 * Amending Reg. Energy Labelling
2021/341 * Amending Reg. Ecodesign
Product standards
CEI EN 55015:2020 (+A11:2020)
CEI EN 60598-1:2022
CEI EN 60598-2-1:2022
CEI EN 61000-3-2:2019 (+A1:2021)
CEI EN 61000-3-3:2014 (+EC1:2014/+EC2:2016/+A1:2021/+A2:2022)
CEI EN 61547:2010
CEI EN 62031:2021 (+A11:2022)
CEI EN 62471:2010
IEC/TR 62471-2:2009
CEI EN 62493:2015
CEI 34-141:2014
Logistics data
Barcode single item
8011905935351
Product sheet
Tender text
Extended
Compact
05URGB2411IN - DURASTRIP RGB
Typology
24V Strip LED.
Installation
Complete with 3M double-sided tape to attach to the surface.
When using double-sided tape degrease the application surface adequately.
Strips can be cut to size by following the cutting indications printed on the strips.
For IP65/IP68 strips, restore the IP protection after cutting.
Packaging
Packaged in 5 meters reels.
Colour of the light
RGB
Characteristic data
Power: 55 W
Beam: 120°
Dimmable: Yes
Input: 24 Vdc
Base: Free Wire
IP: 20
LED Warranty: G3
RG: RG0
Dimensional characteristics
Dimensiones
L: 5000 mm
L1: 8 mm
H: 2.3 mm
Paso de corte
Cutting pitch: 100 mm
LED pitch: 16.6 mm
Lighting and photometric features
Beam opening: 120°
Colour of the light: RGB
Lifespan: 30000 h
LED lifespan: L70B20
Trigger time: <0,2 s
Heating time up to 60% of full efficiency: Instant Full Light
Mercury: 0 mg
Electrical characteristics
Rated power: 55 W
Input voltage: 24 Vdc
Dimmable: Yes
Number of cycles: 60000
Operating temperature: -25°C / +35°C
Operating position: 360°
LED Warranty
G3: Up to 3 years
(4000h/year) *4000h = 11h a day x 365 days.
Without limitations on the duration of use for the first year, provided the observance of the installation conditions.
European Directives
2009/125/EC * Ecodesign
2011/65/EU * RoHS
2012/19/EU * RAEE
2014/30/EU * EMC
2015/863 * Amending RoHS
2017/1369 * Regulation for Energy Labelling
2019/2015 * Regulation for Energy Labelling
2019/2020 * Regulation for Ecodesign
2021/340 * Amending Reg. Energy Labelling
2021/341 * Amending Reg. Ecodesign
Product standards
CEI EN 55015:2020 (+A11:2020)
CEI EN 60598-1:2022
CEI EN 60598-2-1:2022
CEI EN 61000-3-2:2019 (+A1:2021)
CEI EN 61000-3-3:2014 (+EC1:2014/+EC2:2016/+A1:2021/+A2:2022)
CEI EN 61547:2010
CEI EN 62031:2021 (+A11:2022)
CEI EN 62471:2010
IEC/TR 62471-2:2009
CEI EN 62493:2015
CEI 34-141:2014
Logistics data
Item net weight: 105 gr
Barcode single item: 8011905935351
05URGB2411IN - DURASTRIP RGB
Typology: 24V Strip LED. Installation: Complete with 3M double-sided tape to attach to the surface. When using double-sided tape degrease the application surface adequately. Strips can be cut to size by following the cutting indications printed on the strips. For IP65/IP68 strips, restore the IP protection after cutting. Packaging: Packaged in 5 meters reels. Colour of the light: RGB Characteristic data - Power: 55 W; Beam: 120°; Dimmable: Yes; Input: 24 Vdc; Base: Free Wire; IP: 20; LED Warranty: G3; RG: RG0. Dimensional characteristics - Dimensiones; L: 5000 mm; L1: 8 mm; H: 2.3 mm; Paso de corte; Cutting pitch: 100 mm; LED pitch: 16.6 mm. Lighting and photometric features - Beam opening: 120°; Colour of the light: RGB; Lifespan: 30000 h; LED lifespan: L70B20; Trigger time: <0,2 s; Heating time up to 60% of full efficiency: Instant Full Light; Mercury: 0 mg. Electrical characteristics - Rated power: 55 W; Input voltage: 24 Vdc; Dimmable: Yes; Number of cycles: 60000; Operating temperature: -25°C / +35°C; Operating position: 360°. LED Warranty - G3: Up to 3 years ; (4000h/year) *4000h = 11h a day x 365 days. ; Without limitations on the duration of use for the first year, provided the observance of the installation conditions. European Directives - 2009/125/EC * Ecodesign; 2011/65/EU * RoHS; 2012/19/EU * RAEE; 2014/30/EU * EMC; 2015/863 * Amending RoHS; 2017/1369 * Regulation for Energy Labelling; 2019/2015 * Regulation for Energy Labelling; 2019/2020 * Regulation for Ecodesign; 2021/340 * Amending Reg. Energy Labelling; 2021/341 * Amending Reg. Ecodesign. Product standards - CEI EN 55015:2020 (+A11:2020); CEI EN 60598-1:2022; CEI EN 60598-2-1:2022; CEI EN 61000-3-2:2019 (+A1:2021); CEI EN 61000-3-3:2014 (+EC1:2014/+EC2:2016/+A1:2021/+A2:2022); CEI EN 61547:2010; CEI EN 62031:2021 (+A11:2022); CEI EN 62471:2010; IEC/TR 62471-2:2009; CEI EN 62493:2015; CEI 34-141:2014. Logistics data - Item net weight: 105 gr; Barcode single item: 8011905935351.
