Typology
IP68 LED strips for special applications in food retail and distribution.
Colour of the light: white with specific spectra.
Features
Produced with calibrated spectra to improve visual perception of goods in different product sectors.
Installation
Complete with 3M double-sided tape to attach to the surface.
When using double-sided tape degrease the application surface adequately.
Strips can be cut to size by following the cutting indications printed on the strips.
For IP65/IP68 strips, restore the IP protection after cutting.
Applications
The retail food, baked goods and hospitality industries.
Packaging
Packaged in 5 meters reels.
Characteristic data
Dimensional characteristics
Lighting and photometric features
Nominal flux per mt
1070 lm/m
Heating time up to 60% of full efficiency
Instant Full Light
Electrical characteristics
Operating temperature
-25°C / +35°C
LED Warranty
G5h24
Full Guarantee
5 years
(24h/24h) Without limitations on the duration of use for the first year, provided the observance of the installation conditions.
European Directives
2009/125/EC * Ecodesign
2011/65/EU * RoHS
2012/19/EU * RAEE
2014/30/EU * EMC
2015/863 * Amending RoHS
2017/1369 * Regulation for Energy Labelling
2019/2015 * Regulation for Energy Labelling
2019/2020 * Regulation for Ecodesign
2021/340 * Amending Reg. Energy Labelling
2021/341 * Amending Reg. Ecodesign
Product standards
CEI EN 55015:2020 (+A11:2020)
CEI EN 60598-1:2022
CEI EN 60598-2-1:2022
CEI EN 61000-3-2:2019 (+A1:2021)
CEI EN 61000-3-3:2014 (+EC1:2014/+EC2:2016/+A1:2021/+A2:2022)
CEI EN 61547:2010
CEI EN 62031:2021 (+A11:2022)
CEI EN 62471:2010
IEC/TR 62471-2:2009
CEI EN 62493:2015
CEI 34-141:2014
Logistics data
Barcode single item
8011905949921
Product sheet
Tender text
Extended
Compact
05UWE2414XO - DURASTRIP FOOD IP68
Typology
IP68 LED strips for special applications in food retail and distribution.
Colour of the light: white with specific spectra.
Features
Produced with calibrated spectra to improve visual perception of goods in different product sectors.
Installation
Complete with 3M double-sided tape to attach to the surface.
When using double-sided tape degrease the application surface adequately.
Strips can be cut to size by following the cutting indications printed on the strips.
For IP65/IP68 strips, restore the IP protection after cutting.
Applications
The retail food, baked goods and hospitality industries.
Packaging
Packaged in 5 meters reels.
Characteristic data
Power: 70 W
Beam: 120°
Dimmable: Yes
Input: 24 Vdc
Base: Connector
IP: 68
LED Warranty: G5h24
Dimensional characteristics
Dimensiones
L: 5000 mm
L1: 12 mm
H: 4 mm

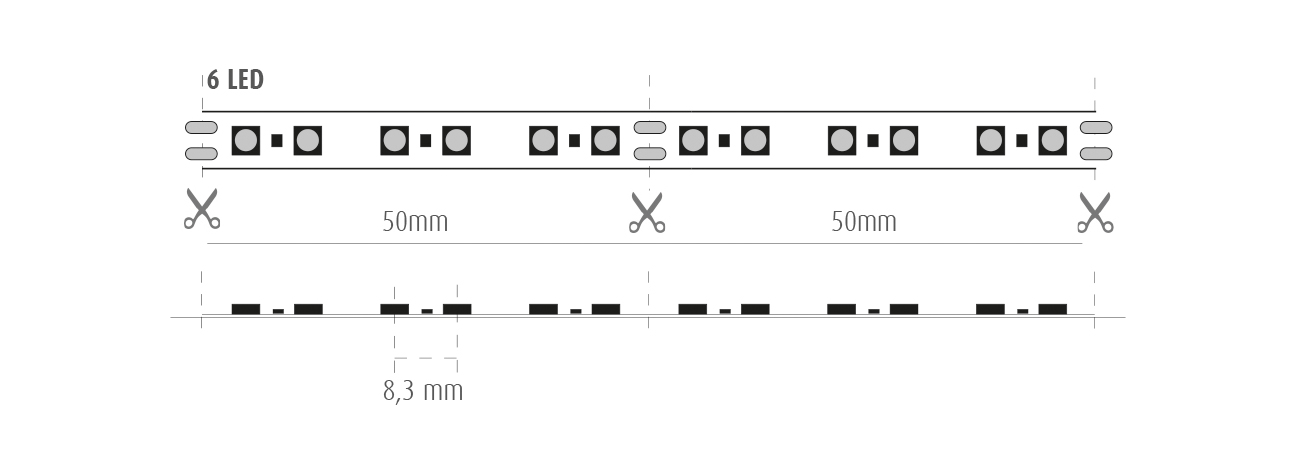

Paso de corte
Cutting pitch: 50 mm
Lighting and photometric features
Beam opening: 120°
Nominal flux per mt: 1070 lm/m
Lifespan: 50000 h
LED lifespan: L70B20
Trigger time: <0,2 s
Heating time up to 60% of full efficiency: Instant Full Light
Mercury: 0 mg
Electrical characteristics
Rated power: 70 W
Input voltage: 24 Vdc
Dimmable: Yes
Number of cycles: 60000
Operating temperature: -25°C / +35°C
Operating position: 360°
LED Warranty
G5h24: Full Guarantee
5 years
(24h/24h) Without limitations on the duration of use for the first year, provided the observance of the installation conditions.
European Directives
2009/125/EC * Ecodesign
2011/65/EU * RoHS
2012/19/EU * RAEE
2014/30/EU * EMC
2015/863 * Amending RoHS
2017/1369 * Regulation for Energy Labelling
2019/2015 * Regulation for Energy Labelling
2019/2020 * Regulation for Ecodesign
2021/340 * Amending Reg. Energy Labelling
2021/341 * Amending Reg. Ecodesign
Product standards
CEI EN 55015:2020 (+A11:2020)
CEI EN 60598-1:2022
CEI EN 60598-2-1:2022
CEI EN 61000-3-2:2019 (+A1:2021)
CEI EN 61000-3-3:2014 (+EC1:2014/+EC2:2016/+A1:2021/+A2:2022)
CEI EN 61547:2010
CEI EN 62031:2021 (+A11:2022)
CEI EN 62471:2010
IEC/TR 62471-2:2009
CEI EN 62493:2015
CEI 34-141:2014
Logistics data
Item net weight: 347 gr
Barcode single item: 8011905949921
Minimum order quantity: 1
05UWE2414XO - DURASTRIP FOOD IP68
Typology: IP68 LED strips for special applications in food retail and distribution. Colour of the light: white with specific spectra. Features: Produced with calibrated spectra to improve visual perception of goods in different product sectors. Installation: Complete with 3M double-sided tape to attach to the surface. When using double-sided tape degrease the application surface adequately. Strips can be cut to size by following the cutting indications printed on the strips. For IP65/IP68 strips, restore the IP protection after cutting. Applications: The retail food, baked goods and hospitality industries. Packaging: Packaged in 5 meters reels. Characteristic data - Power: 70 W; Beam: 120°; Dimmable: Yes; Input: 24 Vdc; Base: Connector; IP: 68; LED Warranty: G5h24. Dimensional characteristics - Dimensiones; L: 5000 mm; L1: 12 mm; H: 4 mm; Paso de corte; Cutting pitch: 50 mm. Lighting and photometric features - Beam opening: 120°; Nominal flux per mt: 1070 lm/m; Lifespan: 50000 h; LED lifespan: L70B20; Trigger time: <0,2 s; Heating time up to 60% of full efficiency: Instant Full Light; Mercury: 0 mg. Electrical characteristics - Rated power: 70 W; Input voltage: 24 Vdc; Dimmable: Yes; Number of cycles: 60000; Operating temperature: -25°C / +35°C; Operating position: 360°. LED Warranty - G5h24: Full Guarantee ; 5 years ; (24h/24h) Without limitations on the duration of use for the first year, provided the observance of the installation conditions. European Directives - 2009/125/EC * Ecodesign; 2011/65/EU * RoHS; 2012/19/EU * RAEE; 2014/30/EU * EMC; 2015/863 * Amending RoHS; 2017/1369 * Regulation for Energy Labelling; 2019/2015 * Regulation for Energy Labelling; 2019/2020 * Regulation for Ecodesign; 2021/340 * Amending Reg. Energy Labelling; 2021/341 * Amending Reg. Ecodesign. Product standards - CEI EN 55015:2020 (+A11:2020); CEI EN 60598-1:2022; CEI EN 60598-2-1:2022; CEI EN 61000-3-2:2019 (+A1:2021); CEI EN 61000-3-3:2014 (+EC1:2014/+EC2:2016/+A1:2021/+A2:2022); CEI EN 61547:2010; CEI EN 62031:2021 (+A11:2022); CEI EN 62471:2010; IEC/TR 62471-2:2009; CEI EN 62493:2015; CEI 34-141:2014. Logistics data - Item net weight: 347 gr; Barcode single item: 8011905949921; Minimum order quantity: 1.
