Typology
LED strip at mains.
Features
DURASTRIP HiVolt differs from similar products due to its extreme sturdiness: the protective sheath is reinforced by a double extrusion layer which provides a solid and highly resistant compacted quality.
DURASTRIP HiVOLT for direct mains connection provides the advantage of being able to reach a length of 50 metres with power directly from mains electrical supply whilst offering lighting uniformity and colour along the entire length of the strip.
Supplied already cut and wired in the requested measurement, may be provided with IP40 or IP65 rating depending on the installation environment.
Installation
We recommend to order the assembly clips considering to use 4 clips for every metre.
Any particular requests will be specified in the project form.
Usage information
Dimmable with DMX dimmer code ZKCDMX-HV.
Accessories
Fixing bridges.
Packaging
Supplied already cut to measures.
Complete with a cable of 1.50 m (black) equipped with a Schuko plug (full collar Schuko IP44) or supplied with free wires (IP65).
LED
Lifetime: internal use >50,000h; external use>35,000h
Colour of the light
Choice of white colour temperatures.
Binning
ANSI/SDCM: 3 step.1
Connections
Up to 50 metres with a single power supply.
Characteristic data
Dimensional characteristics
Cutting pitch
200 mm
LED pitch
14.2 mm
Lighting and photometric features
Nominal flux per mt
1200 lm/m
CCT nominal colour temperature
3500 K
Colour rendering index
>80
Heating time up to 60% of full efficiency
Instant Full Light
Electrical characteristics
Energy efficiency class
This product contains a light source of energy efficiency class "E"
Operating temperature
-25°C / +35°C

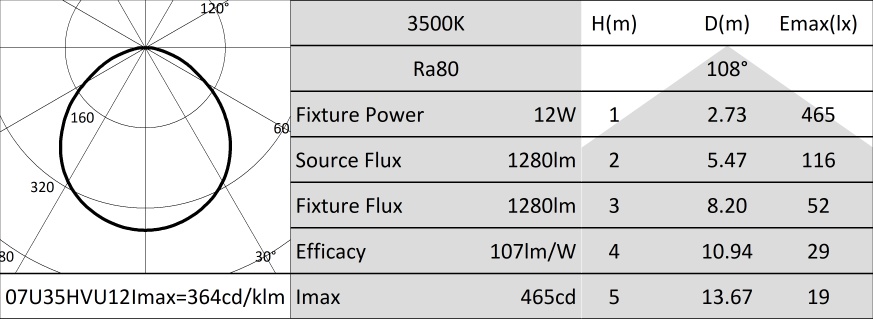

Photometry
LED Warranty
G2
Up to 2 years
(4000h/year) *4000h = 11h a day x 365 days.
Without limitations on the duration of use for the first year, provided the observance of the installation conditions.
European Directives
2009/125/EC * Ecodesign
2011/65/EU * RoHS
2012/19/EU * RAEE
2014/30/EU * EMC
2014/35/EU * LVD
2015/863 * Amending RoHS
2017/1369 * Regulation for Energy Labelling
2019/2015 * Regulation for Energy Labelling
2019/2020 * Regulation for Ecodesign
2021/340 * Amending Reg. Energy Labelling
2021/341 * Amending Reg. Ecodesign
Product standards
CEI EN 55015:2020 (+A11:2020)
CEI EN 60598-1:2022
CEI EN 60598-2-1:2022
CEI EN 61000-3-2:2019 (+A1:2021)
CEI EN 61000-3-3:2014 (+EC1:2014/+EC2:2016/+A1:2021/+A2:2022)
CEI EN 61547:2010
CEI EN 62031:2021 (+A11:2022)
CEI EN 62471:2010
IEC/TR 62471-2:2009
CEI EN 62493:2015
CEI 34-141:2014
Product sheet
Tender text
Extended
Compact
07U35HVU12 - DURASTRIP HiVolt
Typology
LED strip at mains.
Features
DURASTRIP HiVolt differs from similar products due to its extreme sturdiness: the protective sheath is reinforced by a double extrusion layer which provides a solid and highly resistant compacted quality.
DURASTRIP HiVOLT for direct mains connection provides the advantage of being able to reach a length of 50 metres with power directly from mains electrical supply whilst offering lighting uniformity and colour along the entire length of the strip.
Supplied already cut and wired in the requested measurement, may be provided with IP40 or IP65 rating depending on the installation environment.
Installation
We recommend to order the assembly clips considering to use 4 clips for every metre.
Any particular requests will be specified in the project form.
Usage information
Dimmable with DMX dimmer code ZKCDMX-HV.
Accessories
Fixing bridges.
Packaging
Supplied already cut to measures.
Complete with a cable of 1.50 m (black) equipped with a Schuko plug (full collar Schuko IP44) or supplied with free wires (IP65).
LED
Lifetime: internal use >50,000h; external use>35,000h
Colour of the light
Choice of white colour temperatures.
Binning
ANSI/SDCM: 3 step.1
Connections
Up to 50 metres with a single power supply.
Characteristic data
Beam: 110°
Dimmable: Yes
Input: 100-120 Vac
Base: Connector
IP: 40/65
PF: 0,9
Tc: 3500 K
Ra: >80
LED Warranty: G2
RG: RG0
Dimensional characteristics
Dimensiones
L: 1000 mm
L1: 16 mm
H: 8 mm
Paso de corte
Cutting pitch: 200 mm
LED pitch: 14.2 mm
Lighting and photometric features
Beam opening: 110°
Nominal flux per mt: 1200 lm/m
CCT nominal colour temperature: 3500 K
Colour rendering index: >80
Lifespan: 35000 h
LED lifespan: L70B20
Trigger time: <0,2 s
Heating time up to 60% of full efficiency: Instant Full Light
Mercury: 0 mg
Electrical characteristics
Input voltage: 100-120 Vac
Frequency: 60 Hz
Dimmable: Yes
Power factor (PF): 0,9
Energy efficiency class: This product contains a light source of energy efficiency class "E"
Number of cycles: 100000
Operating temperature: -25°C / +35°C
Operating position: 360°
LED Warranty
G2: Up to 2 years
(4000h/year) *4000h = 11h a day x 365 days.
Without limitations on the duration of use for the first year, provided the observance of the installation conditions.
European Directives
2009/125/EC * Ecodesign
2011/65/EU * RoHS
2012/19/EU * RAEE
2014/30/EU * EMC
2014/35/EU * LVD
2015/863 * Amending RoHS
2017/1369 * Regulation for Energy Labelling
2019/2015 * Regulation for Energy Labelling
2019/2020 * Regulation for Ecodesign
2021/340 * Amending Reg. Energy Labelling
2021/341 * Amending Reg. Ecodesign
Product standards
CEI EN 55015:2020 (+A11:2020)
CEI EN 60598-1:2022
CEI EN 60598-2-1:2022
CEI EN 61000-3-2:2019 (+A1:2021)
CEI EN 61000-3-3:2014 (+EC1:2014/+EC2:2016/+A1:2021/+A2:2022)
CEI EN 61547:2010
CEI EN 62031:2021 (+A11:2022)
CEI EN 62471:2010
IEC/TR 62471-2:2009
CEI EN 62493:2015
CEI 34-141:2014
07U35HVU12 - DURASTRIP HiVolt
Typology: LED strip at mains. Features: DURASTRIP HiVolt differs from similar products due to its extreme sturdiness: the protective sheath is reinforced by a double extrusion layer which provides a solid and highly resistant compacted quality. DURASTRIP HiVOLT for direct mains connection provides the advantage of being able to reach a length of 50 metres with power directly from mains electrical supply whilst offering lighting uniformity and colour along the entire length of the strip. Supplied already cut and wired in the requested measurement, may be provided with IP40 or IP65 rating depending on the installation environment. Installation: We recommend to order the assembly clips considering to use 4 clips for every metre. Any particular requests will be specified in the project form. Usage information: Dimmable with DMX dimmer code ZKCDMX-HV. Accessories: Fixing bridges. Packaging: Supplied already cut to measures. Complete with a cable of 1.50 m (black) equipped with a Schuko plug (full collar Schuko IP44) or supplied with free wires (IP65). LED: Lifetime: internal use >50,000h; external use>35,000h Colour of the light: Choice of white colour temperatures. Binning: ANSI/SDCM: 3 step.1 Connections: Up to 50 metres with a single power supply. Characteristic data - Beam: 110°; Dimmable: Yes; Input: 100-120 Vac; Base: Connector; IP: 40/65; PF: 0,9; Tc: 3500 K; Ra: >80; LED Warranty: G2; RG: RG0. Dimensional characteristics - Dimensiones; L: 1000 mm; L1: 16 mm; H: 8 mm; Paso de corte; Cutting pitch: 200 mm; LED pitch: 14.2 mm. Lighting and photometric features - Beam opening: 110°; Nominal flux per mt: 1200 lm/m; CCT nominal colour temperature: 3500 K; Colour rendering index: >80; Lifespan: 35000 h; LED lifespan: L70B20; Trigger time: <0,2 s; Heating time up to 60% of full efficiency: Instant Full Light; Mercury: 0 mg. Electrical characteristics - Input voltage: 100-120 Vac; Frequency: 60 Hz; Dimmable: Yes; Power factor (PF): 0,9; Energy efficiency class: This product contains a light source of energy efficiency class "E"; Number of cycles: 100000; Operating temperature: -25°C / +35°C; Operating position: 360°. LED Warranty - G2: Up to 2 years ; (4000h/year) *4000h = 11h a day x 365 days. ; Without limitations on the duration of use for the first year, provided the observance of the installation conditions. European Directives - 2009/125/EC * Ecodesign; 2011/65/EU * RoHS; 2012/19/EU * RAEE; 2014/30/EU * EMC; 2014/35/EU * LVD; 2015/863 * Amending RoHS; 2017/1369 * Regulation for Energy Labelling; 2019/2015 * Regulation for Energy Labelling; 2019/2020 * Regulation for Ecodesign; 2021/340 * Amending Reg. Energy Labelling; 2021/341 * Amending Reg. Ecodesign. Product standards - CEI EN 55015:2020 (+A11:2020); CEI EN 60598-1:2022; CEI EN 60598-2-1:2022; CEI EN 61000-3-2:2019 (+A1:2021); CEI EN 61000-3-3:2014 (+EC1:2014/+EC2:2016/+A1:2021/+A2:2022); CEI EN 61547:2010; CEI EN 62031:2021 (+A11:2022); CEI EN 62471:2010; IEC/TR 62471-2:2009; CEI EN 62493:2015; CEI 34-141:2014.
