Extender IP20 allows for wireless control with a DALI interface.
It generates a local DALI bus with the capacity to drive up to 64 fixtures.
It can control groups of fixtures in indoor applications.
It is also equipped with a relay that can control non-dimmable fixtures up to a maximum of 6 A.
It prevents any change to the management features provided by the CASAMBI system.
Characteristic data
Dimensional characteristics
Electrical characteristics
European Directives
2009/125/EC * Ecodesign
2011/65/EU * RoHS
2012/19/EU * RAEE
2014/30/EU * EMC
2015/863 * Amending RoHS
2017/1369 * Regulation for Energy Labelling
2019/2015 * Regulation for Energy Labelling
2019/2020 * Regulation for Ecodesign
2021/340 * Amending Reg. Energy Labelling
2021/341 * Amending Reg. Ecodesign
Product standards
CEI EN 55015:2020 (+A11:2020)
CEI EN 61000-3-2:2019 (+A1:2021)
CEI EN 61000-3-3:2014 (+EC1:2014/+EC2:2016/+A1:2021/+A2:2022)
CEI EN 61347-1:2016 (+A1:2021)
CEI EN 61347-2-11:2002 (+A1:2020)
CEI EN 61547:2010
Logistics data
Product sheet
Tender text
Extended
Compact

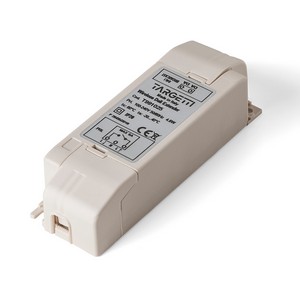

1T5352 - EXTENDER IP20
Extender IP20 allows for wireless control with a DALI interface.
It generates a local DALI bus with the capacity to drive up to 64 fixtures.
It can control groups of fixtures in indoor applications.
It is also equipped with a relay that can control non-dimmable fixtures up to a maximum of 6 A.
It prevents any change to the management features provided by the CASAMBI system.
Characteristic data
Power: 2.7 W
Input: 100-240 Vdc
Base: Terminals
PF: 0,6
Dimensional characteristics
Dimensiones
L: 100 mm
H: 30 mm
Electrical characteristics
Rated power: 2.7 W
Input voltage: 100-240 Vdc
Power factor (PF): 0,6
European Directives
2009/125/EC * Ecodesign
2011/65/EU * RoHS
2012/19/EU * RAEE
2014/30/EU * EMC
2015/863 * Amending RoHS
2017/1369 * Regulation for Energy Labelling
2019/2015 * Regulation for Energy Labelling
2019/2020 * Regulation for Ecodesign
2021/340 * Amending Reg. Energy Labelling
2021/341 * Amending Reg. Ecodesign
Product standards
CEI EN 55015:2020 (+A11:2020)
CEI EN 61000-3-2:2019 (+A1:2021)
CEI EN 61000-3-3:2014 (+EC1:2014/+EC2:2016/+A1:2021/+A2:2022)
CEI EN 61347-1:2016 (+A1:2021)
CEI EN 61347-2-11:2002 (+A1:2020)
CEI EN 61547:2010
Logistics data
Item net weight: 107 gr
Minimum order quantity: 1
1T5352 - EXTENDER IP20
Extender IP20 allows for wireless control with a DALI interface. It generates a local DALI bus with the capacity to drive up to 64 fixtures. It can control groups of fixtures in indoor applications. It is also equipped with a relay that can control non-dimmable fixtures up to a maximum of 6 A. It prevents any change to the management features provided by the CASAMBI system. Characteristic data - Power: 2.7 W; Input: 100-240 Vdc; Base: Terminals; PF: 0,6. Dimensional characteristics - Dimensiones; L: 100 mm; H: 30 mm. Electrical characteristics - Rated power: 2.7 W; Input voltage: 100-240 Vdc; Power factor (PF): 0,6. European Directives - 2009/125/EC * Ecodesign; 2011/65/EU * RoHS; 2012/19/EU * RAEE; 2014/30/EU * EMC; 2015/863 * Amending RoHS; 2017/1369 * Regulation for Energy Labelling; 2019/2015 * Regulation for Energy Labelling; 2019/2020 * Regulation for Ecodesign; 2021/340 * Amending Reg. Energy Labelling; 2021/341 * Amending Reg. Ecodesign. Product standards - CEI EN 55015:2020 (+A11:2020); CEI EN 61000-3-2:2019 (+A1:2021); CEI EN 61000-3-3:2014 (+EC1:2014/+EC2:2016/+A1:2021/+A2:2022); CEI EN 61347-1:2016 (+A1:2021); CEI EN 61347-2-11:2002 (+A1:2020); CEI EN 61547:2010. Logistics data - Item net weight: 107 gr; Minimum order quantity: 1.
