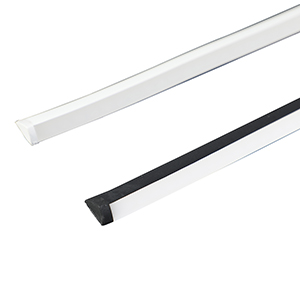

20UT241240-AW
NewDuraNeonFlex CORNER WHITE
Typology
Triangular section silicone extrusion: a profile specifically designed to direct light frontally from a horizontal position.
The asymmetric light distribution, emitted from the front side of the triangular section, is ideal for installations in furniture, retail displays, and bookshelves.
Features
It can be cut at any point and does not require the use of aluminum profiles.
Model with white sheath.
Installation
Surface mounted with clips; can be cut at any point (free cut).
Usage information
Dimmable 0-100%
DALI - DMX
Analogue and digital domotic control systems
Push Dali with ZKCDA controllers
CASAMBI compatible
Power supply
Max current for single power supply: 4A.
Packaging
Packaged in 5 meters reels.
Binning
SDCM <5
Connections
Supplied with free‑wire connection on the left side and an end cap on the other.
Optional wiring terminals, with in‑line or rear output, on the right or left side.
Characteristic data
Dimensional characteristics
Lighting and photometric features
Nominal flux per mt
630 lm/m
CCT nominal colour temperature
4000 K
Colour of the light
Natural light
Heating time up to 60% of full efficiency
Instant Full Light
Electrical characteristics
Energy efficiency class
This product contains a light source of energy efficiency class "F"
Operating temperature
-25°C / +35°C

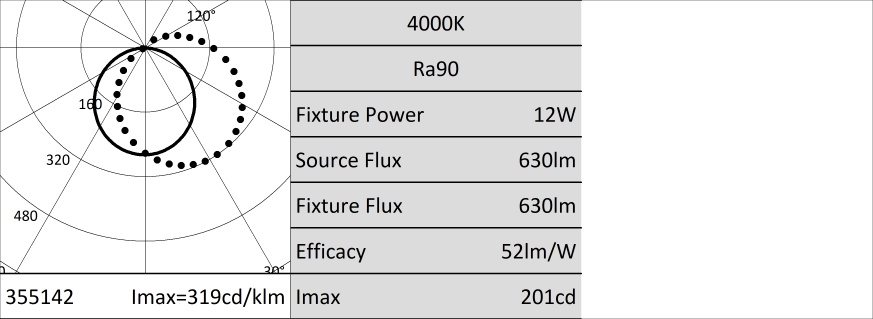

Photometry
LED Warranty
G5h24
Full Guarantee
5 years
(24h/24h) Without limitations on the duration of use for the first year, provided the observance of the installation conditions.
European Directives
2009/125/EC * Ecodesign
2011/65/EU * RoHS
2012/19/EU * RAEE
2014/30/EU * EMC
2015/863 * Amending RoHS
2017/1369 * Regulation for Energy Labelling
2019/2015 * Regulation for Energy Labelling
2019/2020 * Regulation for Ecodesign
2021/340 * Amending Reg. Energy Labelling
2021/341 * Amending Reg. Ecodesign
Product standards
CEI EN 55015:2020 (+A11:2020)
CEI EN 60598-1:2022
CEI EN 60598-2-1:2022
CEI EN 61000-3-2:2019 (+A1:2021)
CEI EN 61000-3-3:2014 (+EC1:2014/+EC2:2016/+A1:2021/+A2:2022)
CEI EN 61547:2010
CEI EN 62031:2021 (+A11:2022)
CEI EN 62471:2010
IEC/TR 62471-2:2009
CEI EN 62493:2015
CEI 34-141:2014
Logistics data
Barcode single item
8011905355142
Number of pieces multiple pack
5
Product sheet
Tender text
Extended
Compact
20UT241240-AW - DuraNeonFlex CORNER WHITE
Typology
Triangular section silicone extrusion: a profile specifically designed to direct light frontally from a horizontal position.
The asymmetric light distribution, emitted from the front side of the triangular section, is ideal for installations in furniture, retail displays, and bookshelves.
Features
It can be cut at any point and does not require the use of aluminum profiles.
Model with white sheath.
Installation
Surface mounted with clips; can be cut at any point (free cut).
Usage information
Dimmable 0-100%
DALI - DMX
Analogue and digital domotic control systems
Push Dali with ZKCDA controllers
CASAMBI compatible
Power supply
Max current for single power supply: 4A.
Packaging
Packaged in 5 meters reels.
Binning
SDCM <5
Connections
Supplied with free‑wire connection on the left side and an end cap on the other.
Optional wiring terminals, with in‑line or rear output, on the right or left side.
Characteristic data
Power: 60 W
Beam: 120°x100°
Dimmable: Yes
Input: 24 Vdc
IP: 54
Tc: 4000 K
Ra: 90
LED Warranty: G5h24
IK: IK06
RG: RG1
Dimensional characteristics
Dimensiones
L: 5000 mm
L1: 15.4 mm
H: 6.6 mm
Lighting and photometric features
Beam opening: 120°x100°
Nominal flux per mt: 630 lm/m
CCT nominal colour temperature: 4000 K
Colour of the light: Natural light
Colour rendering index: 90
Lifespan: 50000 h
LED lifespan: L70B50
Trigger time: <0,2 s
Heating time up to 60% of full efficiency: Instant Full Light
Electrical characteristics
Rated power: 60 W
Input voltage: 24 Vdc
Dimmable: Yes
Energy efficiency class: This product contains a light source of energy efficiency class "F"
Operating temperature: -25°C / +35°C
LED Warranty
G5h24: Full Guarantee
5 years
(24h/24h) Without limitations on the duration of use for the first year, provided the observance of the installation conditions.
European Directives
2009/125/EC * Ecodesign
2011/65/EU * RoHS
2012/19/EU * RAEE
2014/30/EU * EMC
2015/863 * Amending RoHS
2017/1369 * Regulation for Energy Labelling
2019/2015 * Regulation for Energy Labelling
2019/2020 * Regulation for Ecodesign
2021/340 * Amending Reg. Energy Labelling
2021/341 * Amending Reg. Ecodesign
Product standards
CEI EN 55015:2020 (+A11:2020)
CEI EN 60598-1:2022
CEI EN 60598-2-1:2022
CEI EN 61000-3-2:2019 (+A1:2021)
CEI EN 61000-3-3:2014 (+EC1:2014/+EC2:2016/+A1:2021/+A2:2022)
CEI EN 61547:2010
CEI EN 62031:2021 (+A11:2022)
CEI EN 62471:2010
IEC/TR 62471-2:2009
CEI EN 62493:2015
CEI 34-141:2014
Logistics data
Barcode single item: 8011905355142
Number of pieces multiple pack: 5
Minimum order quantity: 5
Minimum packaging: 5 / 5
20UT241240-AW - DuraNeonFlex CORNER WHITE
Typology: Triangular section silicone extrusion: a profile specifically designed to direct light frontally from a horizontal position. The asymmetric light distribution, emitted from the front side of the triangular section, is ideal for installations in furniture, retail displays, and bookshelves. Features: It can be cut at any point and does not require the use of aluminum profiles. Model with white sheath. Installation: Surface mounted with clips; can be cut at any point (free cut). Usage information: Dimmable 0-100% DALI - DMX Analogue and digital domotic control systems Push Dali with ZKCDA controllers CASAMBI compatible Power supply: Max current for single power supply: 4A. Packaging: Packaged in 5 meters reels. Binning: SDCM <5 Connections: Supplied with free‑wire connection on the left side and an end cap on the other. Optional wiring terminals, with in‑line or rear output, on the right or left side. Characteristic data - Power: 60 W; Beam: 120°x100°; Dimmable: Yes; Input: 24 Vdc; IP: 54; Tc: 4000 K; Ra: 90; LED Warranty: G5h24; IK: IK06; RG: RG1. Dimensional characteristics - Dimensiones; L: 5000 mm; L1: 15.4 mm; H: 6.6 mm. Lighting and photometric features - Beam opening: 120°x100°; Nominal flux per mt: 630 lm/m; CCT nominal colour temperature: 4000 K; Colour of the light: Natural light; Colour rendering index: 90; Lifespan: 50000 h; LED lifespan: L70B50; Trigger time: <0,2 s; Heating time up to 60% of full efficiency: Instant Full Light. Electrical characteristics - Rated power: 60 W; Input voltage: 24 Vdc; Dimmable: Yes; Energy efficiency class: This product contains a light source of energy efficiency class "F"; Operating temperature: -25°C / +35°C. LED Warranty - G5h24: Full Guarantee ; 5 years ; (24h/24h) Without limitations on the duration of use for the first year, provided the observance of the installation conditions. European Directives - 2009/125/EC * Ecodesign; 2011/65/EU * RoHS; 2012/19/EU * RAEE; 2014/30/EU * EMC; 2015/863 * Amending RoHS; 2017/1369 * Regulation for Energy Labelling; 2019/2015 * Regulation for Energy Labelling; 2019/2020 * Regulation for Ecodesign; 2021/340 * Amending Reg. Energy Labelling; 2021/341 * Amending Reg. Ecodesign. Product standards - CEI EN 55015:2020 (+A11:2020); CEI EN 60598-1:2022; CEI EN 60598-2-1:2022; CEI EN 61000-3-2:2019 (+A1:2021); CEI EN 61000-3-3:2014 (+EC1:2014/+EC2:2016/+A1:2021/+A2:2022); CEI EN 61547:2010; CEI EN 62031:2021 (+A11:2022); CEI EN 62471:2010; IEC/TR 62471-2:2009; CEI EN 62493:2015; CEI 34-141:2014. Logistics data - Barcode single item: 8011905355142; Number of pieces multiple pack: 5; Minimum order quantity: 5; Minimum packaging: 5 / 5.
