Typology
ARCHITECTURAL OPTIC transforms the way light interacts with space, offering precision and creativity like never before.
Whether you want to achieve narrow, well-defined beams or asymmetric distributions that wrap surfaces evenly, the OPTIC line guarantees a stunning visual impact.

Features

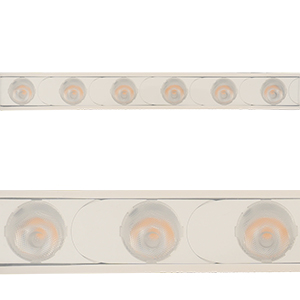

It is a silicone profile with a very small section, 30 x 23 mm, which allows flexibility impossible to achieve with rigid bar fixtures.

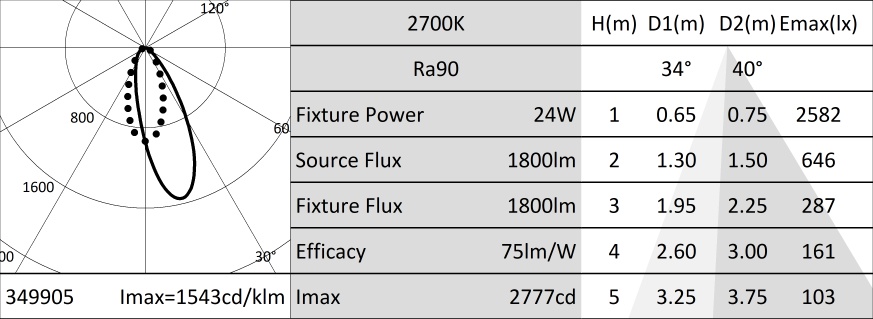

Available with emission angles of 10° and 30°, as well as asymmetric solutions.

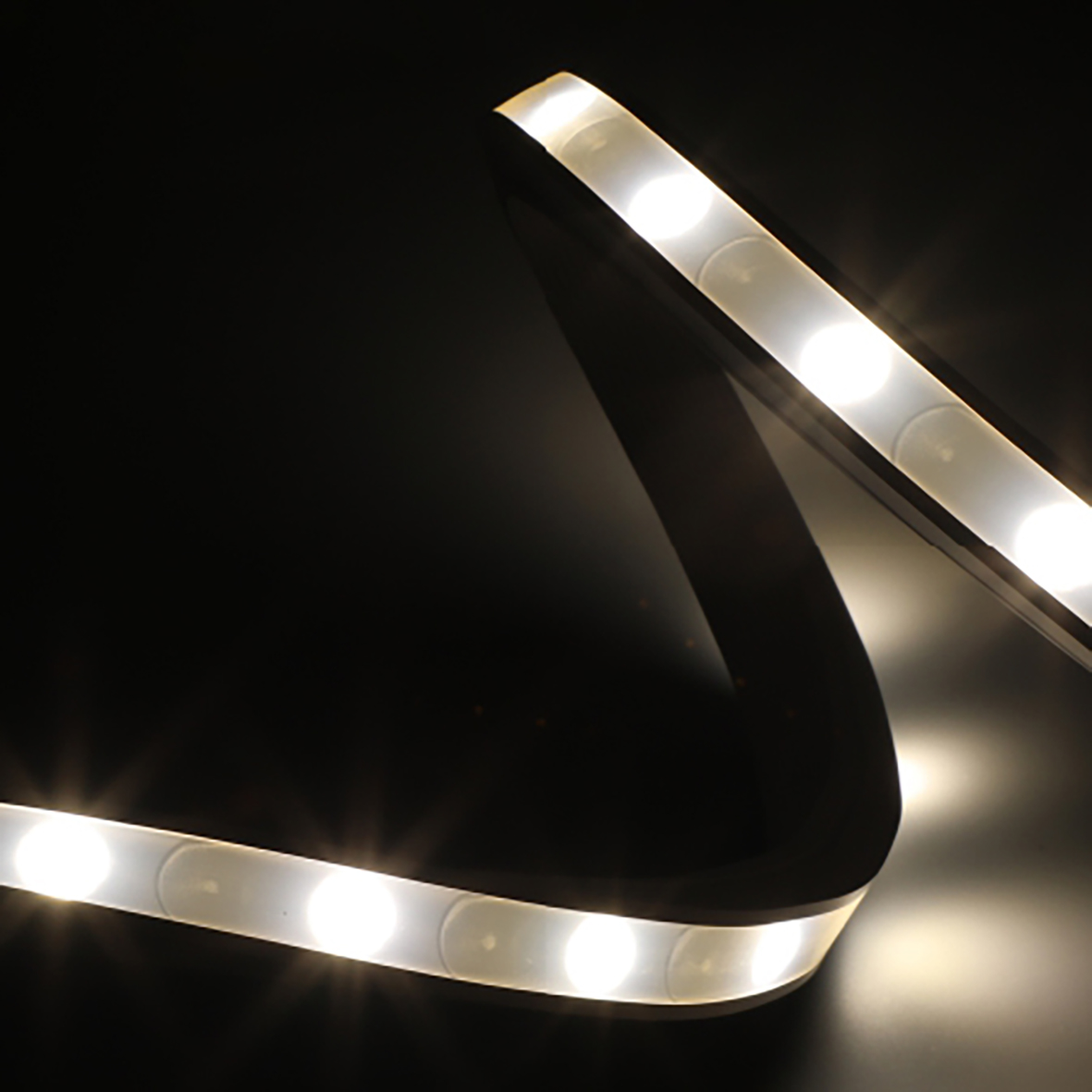

This range of ultra-light and highly flexible profiles easily adapts to both vertical and horizontal curves.
RGBW versions are available with two beam angles.
Designing along the fluid lines of contemporary architecture has never been so simple and so inspiring!

Installation
Mounted with clips or with rigid and flexible profiles.
The cutting pitch is 250 mm.
Possibility to direct the beam with the adjustable bracket.

Material
Flexible silicone extrusion characterized by impact resistance, high tear resistance, and weather resistance.

Usage information
Dimmable 0-100%
DALI - DMX
Analogue and digital domotic control systems
Push Dali with ZKCDA controllers
CASAMBI compatible

Power supply
Max current for single power supply: 4A.

Connections
This item is supplied made to measure according to the specifications required by the project.
Please contact the sales team for further information.
