Typology
ARCHITECTURAL OPTIC transforms the way light interacts with space, offering precision and creativity like never before.
The GRAZER version is designed to enhance vertical surfaces and material textures.
The grazing light creates dynamic lighting effects and a strong scenic impact.
Ideal for high‑quality architectural, museum and retail wall‑grazing.
Features
It is a silicone profile with a very small section, 30 x 23 mm, which allows flexibility impossible to achieve with rigid bar fixtures.
Available with emission angles of 10° and 30°, as well as asymmetric solutions.
This range of ultra-light and highly flexible profiles easily adapts to both vertical and horizontal curves.
Designing along the fluid lines of contemporary architecture has never been so simple and so inspiring!
Installation
Mounted with clips or with rigid and flexible profiles.
The cutting pitch is 250 mm.
Possibility to direct the beam with the adjustable bracket.
Material
Flexible silicone extrusion characterized by impact resistance, high tear resistance, and weather resistance.
Usage information
Dimmable 0-100%
DALI - DMX
Analogue and digital domotic control systems
Push Dali with ZKCDA controllers
CASAMBI compatible
Power supply
Max current for single power supply: 4A.
Connections
This item is supplied made to measure according to the specifications required by the project.
Please contact the sales team for further information.
Characteristic data
Dimensional characteristics
Cutting pitch
250 mm
LED pitch
41 mm
Lighting and photometric features
Nominal flux per mt
1900 lm/m
CCT nominal colour temperature
3000 K
Electrical characteristics
Energy efficiency class
This product contains a light source of energy efficiency class "F"
Operating temperature
-25°C / +35°C

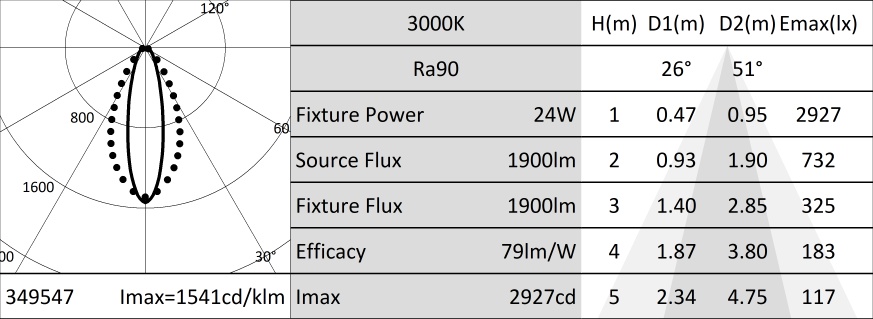

Photometry
LED Warranty
G5h24
Full Guarantee
5 years
(24h/24h) Without limitations on the duration of use for the first year, provided the observance of the installation conditions.
Logistics data
Barcode single item
8011905349547
Number of pieces multiple pack
5
Product sheet
Tender text
Extended
Compact
22U242430-AG - Architectural OPTICS
Typology
ARCHITECTURAL OPTIC transforms the way light interacts with space, offering precision and creativity like never before.
The GRAZER version is designed to enhance vertical surfaces and material textures.
The grazing light creates dynamic lighting effects and a strong scenic impact.
Ideal for high‑quality architectural, museum and retail wall‑grazing.
Features
It is a silicone profile with a very small section, 30 x 23 mm, which allows flexibility impossible to achieve with rigid bar fixtures.
Available with emission angles of 10° and 30°, as well as asymmetric solutions.
This range of ultra-light and highly flexible profiles easily adapts to both vertical and horizontal curves.
Designing along the fluid lines of contemporary architecture has never been so simple and so inspiring!
Installation
Mounted with clips or with rigid and flexible profiles.
The cutting pitch is 250 mm.
Possibility to direct the beam with the adjustable bracket.
Material
Flexible silicone extrusion characterized by impact resistance, high tear resistance, and weather resistance.
Usage information
Dimmable 0-100%
DALI - DMX
Analogue and digital domotic control systems
Push Dali with ZKCDA controllers
CASAMBI compatible
Power supply
Max current for single power supply: 4A.
Connections
This item is supplied made to measure according to the specifications required by the project.
Please contact the sales team for further information.
Characteristic data
Power: 120 W
Beam: 25°x50°
Dimmable: Yes
Input: 24 Vdc
IP: 67
Tc: 3000 K
Ra: 90
LED Warranty: G5h24
IK: IK07
RG: RG1
Dimensional characteristics
Dimensiones
L: 5000 mm
L1: 30 mm
H: 23 mm
Paso de corte
Cutting pitch: 250 mm
LED pitch: 41 mm
Lighting and photometric features
Beam opening: 25°x50°
Nominal flux per mt: 1900 lm/m
CCT nominal colour temperature: 3000 K
Colour rendering index: 90
Lifespan: 50000 h
LED lifespan: L70B50
Electrical characteristics
Rated power: 120 W
Input voltage: 24 Vdc
Dimmable: Yes
Energy efficiency class: This product contains a light source of energy efficiency class "F"
Operating temperature: -25°C / +35°C
LED Warranty
G5h24: Full Guarantee
5 years
(24h/24h) Without limitations on the duration of use for the first year, provided the observance of the installation conditions.
Logistics data
Barcode single item: 8011905349547
Number of pieces multiple pack: 5
Minimum order quantity: 5
Minimum packaging: 5 / 5
