B60-1RB
EUROSTANDARD PLUS - RECESSED

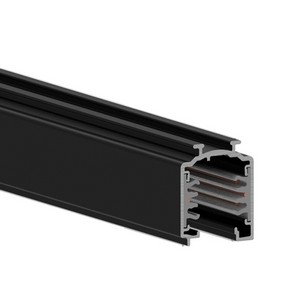

Eurostandard Plus track from the Targetti collection.
System is a 3 phase mixed system with two additional conductors intended to manage a general data signal (for example DALI, DMX).
Electrified track in three lengths in extruded anodized aluminum or in extruded painted aluminium.
Conductors in copper insulated in PVC.
Installation
There are three possible installation systems: directly on false ceiling (using the needlepoints on the track and the suspension kit), on ceiling using a metal clip or hanging by a mounting kit.
Power supply
Frequency: 50 Hz.
Rated current and voltage: L1/L2/L3/N/ground 16A/440V + D+/D- 2x1A/50V FELV AC (DALI).
Phase / phases power: 3,6kVA / 10,8kVA.
Characteristic data
Dimensional characteristics
Electrical characteristics
LED Warranty
G5h24
Full Guarantee
5 years
(24h/24h) Without limitations on the duration of use for the first year, provided the observance of the installation conditions.
European Directives
2011/65/EU * RoHS
2012/19/EU * RAEE
2015/863 * Amending RoHS
Logistics data
Barcode single item
8011905992484
Product sheet
Tender text
Extended
Compact
B60-1RB - EUROSTANDARD PLUS - RECESSED
Eurostandard Plus track from the Targetti collection.
System is a 3 phase mixed system with two additional conductors intended to manage a general data signal (for example DALI, DMX).
Electrified track in three lengths in extruded anodized aluminum or in extruded painted aluminium.
Conductors in copper insulated in PVC.
Installation
There are three possible installation systems: directly on false ceiling (using the needlepoints on the track and the suspension kit), on ceiling using a metal clip or hanging by a mounting kit.
Power supply
Frequency: 50 Hz.
Rated current and voltage: L1/L2/L3/N/ground 16A/440V + D+/D- 2x1A/50V FELV AC (DALI).
Phase / phases power: 3,6kVA / 10,8kVA.
Characteristic data
Input: 230-280 Vac
LED Warranty: G5h24
Color: Black
Dimensional characteristics
Dimensiones
L: 1000 mm
Electrical characteristics
Input voltage: 230-280 Vac
LED Warranty
G5h24: Full Guarantee
5 years
(24h/24h) Without limitations on the duration of use for the first year, provided the observance of the installation conditions.
European Directives
2011/65/EU * RoHS
2012/19/EU * RAEE
2015/863 * Amending RoHS
Logistics data
Item net weight: 1100 gr
Barcode single item: 8011905992484
Minimum order quantity: 1
B60-1RB - EUROSTANDARD PLUS - RECESSED
Eurostandard Plus track from the Targetti collection. System is a 3 phase mixed system with two additional conductors intended to manage a general data signal (for example DALI, DMX). Electrified track in three lengths in extruded anodized aluminum or in extruded painted aluminium. Conductors in copper insulated in PVC. Installation: There are three possible installation systems: directly on false ceiling (using the needlepoints on the track and the suspension kit), on ceiling using a metal clip or hanging by a mounting kit. Power supply: Frequency: 50 Hz. Rated current and voltage: L1/L2/L3/N/ground 16A/440V + D+/D- 2x1A/50V FELV AC (DALI). Phase / phases power: 3,6kVA / 10,8kVA. Characteristic data - Input: 230-280 Vac; LED Warranty: G5h24; Color: Black. Dimensional characteristics - Dimensiones; L: 1000 mm. Electrical characteristics - Input voltage: 230-280 Vac. LED Warranty - G5h24: Full Guarantee ; 5 years ; (24h/24h) Without limitations on the duration of use for the first year, provided the observance of the installation conditions. European Directives - 2011/65/EU * RoHS; 2012/19/EU * RAEE; 2015/863 * Amending RoHS. Logistics data - Item net weight: 1100 gr; Barcode single item: 8011905992484; Minimum order quantity: 1.
