Typology
PAR20, 30 and PAR38 lamps produced with the same material and shape of halogen lamps.
Features
Retrofit of halogen lamps: the absence of frontally emitted heat avoids the discoloration of the illuminated objects.
The Vintage range includes even PAR16 and MR16.
Material
Glass.
Applications
Commercial or residential installations with particular attention to the areduction of heat, cause of goods discoloration.
Notes
Do not use with dimmer.
Characteristic data
Dimensional characteristics
Lighting and photometric features
CCT nominal colour temperature
3000 K
Colour of the light
Warm light
Heating time up to 60% of full efficiency
Instant Full Light
Electrical characteristics
Weighted energy consumption
12 kWh/1000h
Operating temperature
-25°C / +35°C
Equivalence with incandescent lamp
112

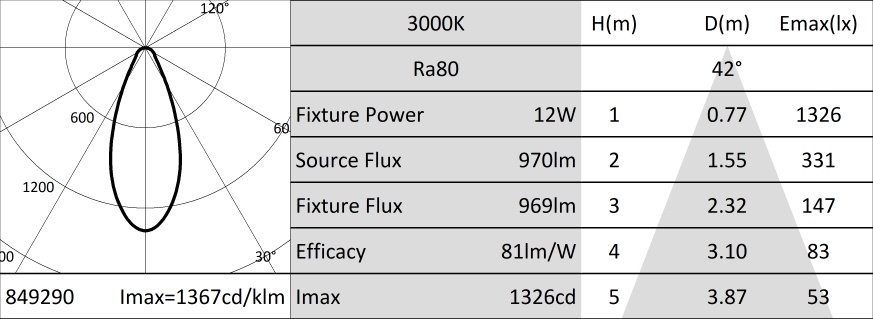

Photometry
Other Infotech
LED Warranty
G3
Up to 3 years
(4000h/year) *4000h = 11h a day x 365 days.
Without limitations on the duration of use for the first year, provided the observance of the installation conditions.
European Directives
2009/125/EC * Ecodesign
2011/65/EU * RoHS
2012/19/EU * RAEE
2014/30/EU * EMC
2014/35/EU * LVD
2015/863 * Amending RoHS
2017/1369 * Regulation for Energy Labelling
2019/2015 * Regulation for Energy Labelling
2019/2020 * Regulation for Ecodesign
2021/340 * Amending Reg. Energy Labelling
2021/341 * Amending Reg. Ecodesign
Product standards
CEI EN 55015:2020 (+A11:2020)
CEI EN 60968:2016
CEI EN 61000-3-2:2019 (+A1:2021)
CEI EN 61000-3-3:2014 (+EC1:2014/+EC2:2016/+A1:2021/+A2:2022)
CEI EN 61547:2010
CEI EN 62031:2021 (+A11:2022)
CEI EN 62471:2010
IEC/TR 62471-2:2009
CEI EN 62560:2013 (+A1:2017/+A11:2020)
CEI 34-141:2014
Logistics data
Barcode single item
8011905849290
Number of pieces multiple pack
10
Barcode multiple pack
8011905849306
Product sheet
Tender text
Extended
Compact

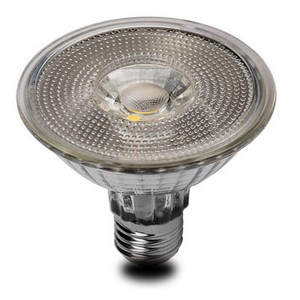

L7206W - VINTAGE PAR30
Typology
PAR20, 30 and PAR38 lamps produced with the same material and shape of halogen lamps.
Features
Retrofit of halogen lamps: the absence of frontally emitted heat avoids the discoloration of the illuminated objects.
The Vintage range includes even PAR16 and MR16.
Material
Glass.
Applications
Commercial or residential installations with particular attention to the areduction of heat, cause of goods discoloration.
Notes
Do not use with dimmer.
Characteristic data
Power: 12 W
Beam: 40°
Dimmable: No
Input: 220-240 Vac
Base: E27
IP: 20
Flux: 970 lm
PF: 0,51
Tc: 3000 K
Ra: 80
LED Warranty: G3
Axis: 1300 cd
Dimensional characteristics
Dimensiones
ø: 95 mm
H: 84 mm
Lighting and photometric features
Beam opening: 40°
Flux: 970 lm
CCT nominal colour temperature: 3000 K
Colour of the light: Warm light
Colour rendering index: 80
Lifespan: 15000 h
LED lifespan: L70B50
Trigger time: <0,2 s
Heating time up to 60% of full efficiency: Instant Full Light
Mercury: 0 mg
Electrical characteristics
Rated power: 12 W
Input voltage: 220-240 Vac
Frequency: 50 Hz
Dimmable: No
Power factor (PF): 0,51
Input current: 0.1 A
Weighted energy consumption: 12 kWh/1000h
Number of cycles: 100000
Operating temperature: -25°C / +35°C
Equivalence with incandescent lamp: 112
LED Warranty
G3: Up to 3 years
(4000h/year) *4000h = 11h a day x 365 days.
Without limitations on the duration of use for the first year, provided the observance of the installation conditions.
Standards and Directives
2009/125/EC, 1194/2012, 2015/1428, 2010/30/EU, 874/2012, 2011/65/EU, 2012/19/EU, 2014/30/EU, 2014/35/EU, 2015/863
CEI EN 55015:2020
CEI EN 60968:2016
CEI EN 61000-3-2:2019
CEI EN 61000-3-3:2014
CEI EN 61547:2010
CEI EN 62031:2009
CEI EN 62031/A1/A2:2015
CEI EN 62471:2010
IEC TR 62471-2:2009
CEI EN 62560:2013
CEI EN 62560/A1:2017
CEI 34-141:2014
Logistics data
Item net weight: 250 gr
Barcode single item: 8011905849290
Number of pieces multiple pack: 10
Barcode multiple pack: 8011905849306
Other Infotech
Reflector: Yes
L7206W - VINTAGE PAR30
Typology: PAR20, 30 and PAR38 lamps produced with the same material and shape of halogen lamps. Features: Retrofit of halogen lamps: the absence of frontally emitted heat avoids the discoloration of the illuminated objects. The Vintage range includes even PAR16 and MR16. Material: Glass. Applications: Commercial or residential installations with particular attention to the areduction of heat, cause of goods discoloration. Notes: Do not use with dimmer. Characteristic data - Power: 12 W; Beam: 40°; Dimmable: No; Input: 220-240 Vac; Base: E27; IP: 20; Flux: 970 lm; PF: 0,51; Tc: 3000 K; Ra: 80; LED Warranty: G3; Axis: 1300 cd. Dimensional characteristics - Dimensiones; ø: 95 mm; H: 84 mm. Lighting and photometric features - Beam opening: 40°; Flux: 970 lm; CCT nominal colour temperature: 3000 K; Colour of the light: Warm light; Colour rendering index: 80; Lifespan: 15000 h; LED lifespan: L70B50; Trigger time: <0,2 s; Heating time up to 60% of full efficiency: Instant Full Light; Mercury: 0 mg. Electrical characteristics - Rated power: 12 W; Input voltage: 220-240 Vac; Frequency: 50 Hz; Dimmable: No; Power factor (PF): 0,51; Input current: 0.1 A; Weighted energy consumption: 12 kWh/1000h; Number of cycles: 100000; Operating temperature: -25°C / +35°C; Equivalence with incandescent lamp: 112. LED Warranty - G3: Up to 3 years ; (4000h/year) *4000h = 11h a day x 365 days. ; Without limitations on the duration of use for the first year, provided the observance of the installation conditions. Standards and Directives - 2009/125/EC, 1194/2012, 2015/1428, 2010/30/EU, 874/2012, 2011/65/EU, 2012/19/EU, 2014/30/EU, 2014/35/EU, 2015/863; CEI EN 55015:2020; CEI EN 60968:2016; CEI EN 61000-3-2:2019; CEI EN 61000-3-3:2014; CEI EN 61547:2010; CEI EN 62031:2009; CEI EN 62031/A1/A2:2015; CEI EN 62471:2010; IEC TR 62471-2:2009; CEI EN 62560:2013; CEI EN 62560/A1:2017; CEI 34-141:2014. Logistics data - Item net weight: 250 gr; Barcode single item: 8011905849290; Number of pieces multiple pack: 10; Barcode multiple pack: 8011905849306. Other Infotech - Reflector: Yes.
Eulumdat
