Typology
Emergency electronic unit for standby lighting (as indicated by the UNI EN 1838) suitable for current controlled power LED.
Can be used for maintained or emergency operation.
Can be used with max 2A - 90V.
Battery life: 3 hours (battery pack dimensions: 135 x 45 x 23 mm).
Battery inserted in a protective case in accordance with regulations.
Residual flux in emergency 7%.
Reserve lighting means lighting that allows you to continue normal activity without substantial change.
Fixtures indicated as compatible with the kit have passed the required tests for the reserve lighting category in compliance with EN 60598-2-22.
Characteristic data
Lighting and photometric features
Electrical characteristics
Operating temperature
-25°C / +35°C
Other Infotech
European Directives
2009/125/EC * Ecodesign
2011/65/EU * RoHS
2012/19/EU * RAEE
2014/30/EU * EMC
2014/35/EU * LVD
2015/863 * Amending RoHS
2017/1369 * Regulation for Energy Labelling
2019/2015 * Regulation for Energy Labelling
2019/2020 * Regulation for Ecodesign
2021/340 * Amending Reg. Energy Labelling
2021/341 * Amending Reg. Ecodesign
Product standards
CEI EN 55015:2020 (+A11:2020)
CEI EN 61000-3-2:2019 (+A1:2021)
CEI EN 61000-3-3:2014 (+EC1:2014/+EC2:2016/+A1:2021/+A2:2022)
CEI EN 61347-1:2016 (+A1:2021)
CEI EN 61347-2-13:2015 (+A1:2018)
CEI EN 61547:2010
Logistics data
Barcode single item
8011905971724
Number of pieces multiple pack
10
Barcode multiple pack
8011905781866
Product sheet
Tender text
Extended
Compact

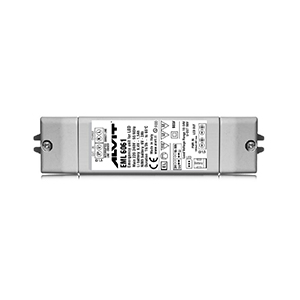

KTEMR03 - Emergency electronic unit for standby lighting
Typology
Emergency electronic unit for standby lighting (as indicated by the UNI EN 1838) suitable for current controlled power LED.
Can be used for maintained or emergency operation.
Can be used with max 2A - 90V.
Battery life: 3 hours (battery pack dimensions: 135 x 45 x 23 mm).
Battery inserted in a protective case in accordance with regulations.
Residual flux in emergency 7%.
Reserve lighting means lighting that allows you to continue normal activity without substantial change.
Fixtures indicated as compatible with the kit have passed the required tests for the reserve lighting category in compliance with EN 60598-2-22.
Characteristic data
Input: 220-240 Vac
Base: Screws
Tc:
Lighting and photometric features
CCT nominal colour temperature:
Lifespan: 25000 h
LED lifespan: L70B50
Electrical characteristics
Input voltage: 220-240 Vac
Frequency: 50 Hz
Operating temperature: -25°C / +35°C
European Directives
2009/125/EC * Ecodesign
2011/65/EU * RoHS
2012/19/EU * RAEE
2014/30/EU * EMC
2014/35/EU * LVD
2015/863 * Amending RoHS
2017/1369 * Regulation for Energy Labelling
2019/2015 * Regulation for Energy Labelling
2019/2020 * Regulation for Ecodesign
2021/340 * Amending Reg. Energy Labelling
2021/341 * Amending Reg. Ecodesign
Product standards
CEI EN 55015:2020 (+A11:2020)
CEI EN 61000-3-2:2019 (+A1:2021)
CEI EN 61000-3-3:2014 (+EC1:2014/+EC2:2016/+A1:2021/+A2:2022)
CEI EN 61347-1:2016 (+A1:2021)
CEI EN 61347-2-13:2015 (+A1:2018)
CEI EN 61547:2010
Logistics data
Item net weight: 470 gr
Barcode single item: 8011905971724
Number of pieces multiple pack: 10
Barcode multiple pack: 8011905781866
Minimum order quantity: 1
Minimum packaging: 1 / 10
Other Infotech
Max Case Temperature: 80
KTEMR03 - Emergency electronic unit for standby lighting
Typology: Emergency electronic unit for standby lighting (as indicated by the UNI EN 1838) suitable for current controlled power LED. Can be used for maintained or emergency operation. Can be used with max 2A - 90V. Battery life: 3 hours (battery pack dimensions: 135 x 45 x 23 mm). Battery inserted in a protective case in accordance with regulations. Residual flux in emergency 7%. Reserve lighting means lighting that allows you to continue normal activity without substantial change. Fixtures indicated as compatible with the kit have passed the required tests for the reserve lighting category in compliance with EN 60598-2-22. Characteristic data - Input: 220-240 Vac; Base: Screws; Tc: . Lighting and photometric features - CCT nominal colour temperature: ; Lifespan: 25000 h; LED lifespan: L70B50. Electrical characteristics - Input voltage: 220-240 Vac; Frequency: 50 Hz; Operating temperature: -25°C / +35°C. European Directives - 2009/125/EC * Ecodesign; 2011/65/EU * RoHS; 2012/19/EU * RAEE; 2014/30/EU * EMC; 2014/35/EU * LVD; 2015/863 * Amending RoHS; 2017/1369 * Regulation for Energy Labelling; 2019/2015 * Regulation for Energy Labelling; 2019/2020 * Regulation for Ecodesign; 2021/340 * Amending Reg. Energy Labelling; 2021/341 * Amending Reg. Ecodesign. Product standards - CEI EN 55015:2020 (+A11:2020); CEI EN 61000-3-2:2019 (+A1:2021); CEI EN 61000-3-3:2014 (+EC1:2014/+EC2:2016/+A1:2021/+A2:2022); CEI EN 61347-1:2016 (+A1:2021); CEI EN 61347-2-13:2015 (+A1:2018); CEI EN 61547:2010. Logistics data - Item net weight: 470 gr; Barcode single item: 8011905971724; Number of pieces multiple pack: 10; Barcode multiple pack: 8011905781866; Minimum order quantity: 1; Minimum packaging: 1 / 10. Other Infotech - Max Case Temperature: 80.

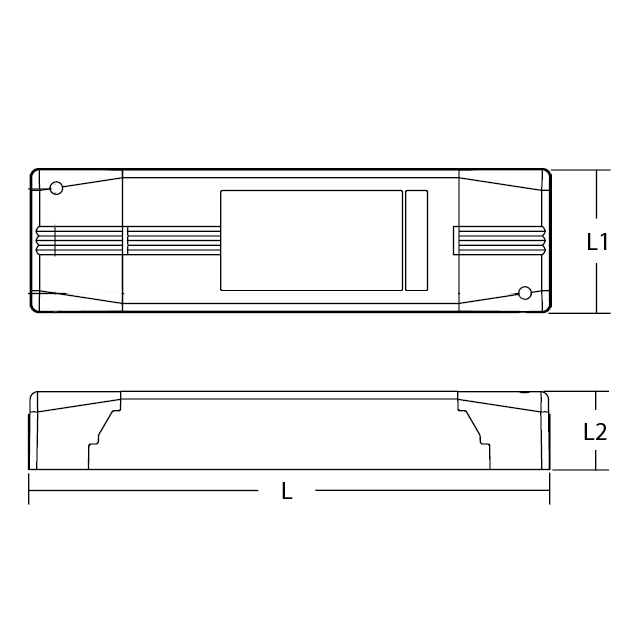

Picture 2
