Typology
Linear LED lamp with a 330° light emission and offset lamp caps.
Features
The particular position of the lamp caps allows these lamps to be inserted into all fixtures with R7s lampholders.
Material
Thermoconductive polymers.
Applications
The absence of UV and infrared rays that cause discoloration of goods make this lamp preferable to a halogen lamp, especially in commercial applications.
Notes
Explosion proof glass not necessary.
Do not use with dimmers except if otherwise indicated.
Characteristic data
Dimensional characteristics
Lighting and photometric features
CCT nominal colour temperature
2700 K
Colour of the light
Warm light
Heating time up to 60% of full efficiency
Instant Full Light
Electrical characteristics
Weighted energy consumption
16 kWh/1000h
Operating temperature
-25°C / +35°C
Equivalence with incandescent lamp
126

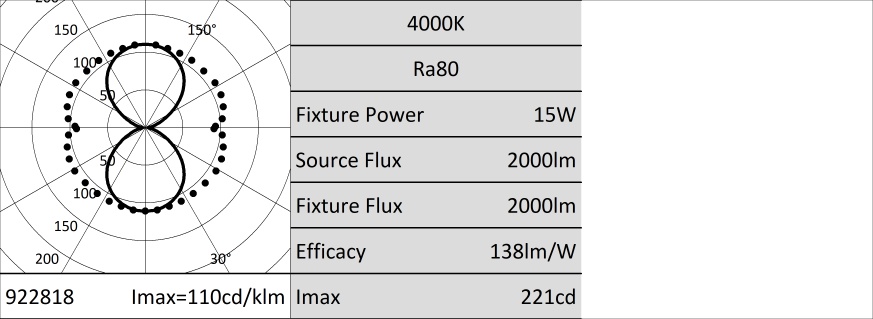

Photometry
LED Warranty
G2
Up to 2 years
(4000h/year) *4000h = 11h a day x 365 days.
Without limitations on the duration of use for the first year, provided the observance of the installation conditions.
European Directives
2009/125/EC * Ecodesign
2011/65/EU * RoHS
2012/19/EU * RAEE
2014/30/EU * EMC
2014/35/EU * LVD
2015/863 * Amending RoHS
2017/1369 * Regulation for Energy Labelling
2019/2015 * Regulation for Energy Labelling
2019/2020 * Regulation for Ecodesign
2021/340 * Amending Reg. Energy Labelling
2021/341 * Amending Reg. Ecodesign
Product standards
CEI EN 55015:2020 (+A11:2020)
CEI EN 60968:2016
CEI EN 61000-3-2:2019 (+A1:2021)
CEI EN 61000-3-3:2014 (+EC1:2014/+EC2:2016/+A1:2021/+A2:2022)
CEI EN 61547:2010
CEI EN 62031:2021 (+A11:2022)
CEI EN 62471:2010
IEC/TR 62471-2:2009
CEI EN 62560:2013 (+A1:2017/+A11:2020)
CEI 34-141:2014
Logistics data
Barcode single item
8011905922801
Number of pieces multiple pack
10
Barcode multiple pack
8011905932107
Product sheet
Tender text
Extended
Compact
L2973W - LINEAR ERRE7s 330°
Typology
Linear LED lamp with a 330° light emission and offset lamp caps.
Features
The particular position of the lamp caps allows these lamps to be inserted into all fixtures with R7s lampholders.
Material
Thermoconductive polymers.
Applications
The absence of UV and infrared rays that cause discoloration of goods make this lamp preferable to a halogen lamp, especially in commercial applications.
Notes
Explosion proof glass not necessary.
Do not use with dimmers except if otherwise indicated.
Characteristic data
Power: 15.5 W
Beam: 330°
Dimmable: No
Input: 220-240 Vac
Base: R7s
IP: 20
Flux: 2000 lm
PF: 0,9
Tc: 2700 K
Ra: 80
LED Warranty: G2
Dimensional characteristics
Dimensiones
L: 118 mm
ø: 29 mm
Lighting and photometric features
Beam opening: 330°
Flux: 2000 lm
CCT nominal colour temperature: 2700 K
Colour of the light: Warm light
Colour rendering index: 80
Lifespan: 15000 h
LED lifespan: L70B50
Trigger time: <0,2 s
Heating time up to 60% of full efficiency: Instant Full Light
Mercury: 0 mg
Electrical characteristics
Rated power: 15.5 W
Input voltage: 220-240 Vac
Frequency: 50 Hz
Dimmable: No
Power factor (PF): 0,9
Input current: 0.07 A
Weighted energy consumption: 16 kWh/1000h
Energy efficiency class: E
Operating temperature: -25°C / +35°C
Equivalence with incandescent lamp: 126
LED Warranty
G2: Up to 2 years
(4000h/year) *4000h = 11h a day x 365 days.
Without limitations on the duration of use for the first year, provided the observance of the installation conditions.
European Directives
2009/125/EC * Ecodesign
2011/65/EU * RoHS
2012/19/EU * RAEE
2014/30/EU * EMC
2014/35/EU * LVD
2015/863 * Amending RoHS
2017/1369 * Regulation for Energy Labelling
2019/2015 * Regulation for Energy Labelling
2019/2020 * Regulation for Ecodesign
2021/340 * Amending Reg. Energy Labelling
2021/341 * Amending Reg. Ecodesign
Product standards
CEI EN 55015:2020 (+A11:2020)
CEI EN 60968:2016
CEI EN 61000-3-2:2019 (+A1:2021)
CEI EN 61000-3-3:2014 (+EC1:2014/+EC2:2016/+A1:2021/+A2:2022)
CEI EN 61547:2010
CEI EN 62031:2021 (+A11:2022)
CEI EN 62471:2010
IEC/TR 62471-2:2009
CEI EN 62560:2013 (+A1:2017/+A11:2020)
CEI 34-141:2014
Logistics data
Item net weight: 50 gr
Barcode single item: 8011905922801
Number of pieces multiple pack: 10
Barcode multiple pack: 8011905932107
Minimum order quantity: 10
L2973W - LINEAR ERRE7s 330°
Typology: Linear LED lamp with a 330° light emission and offset lamp caps. Features: The particular position of the lamp caps allows these lamps to be inserted into all fixtures with R7s lampholders. Material: Thermoconductive polymers. Applications: The absence of UV and infrared rays that cause discoloration of goods make this lamp preferable to a halogen lamp, especially in commercial applications. Notes: Explosion proof glass not necessary. Do not use with dimmers except if otherwise indicated. Characteristic data - Power: 15.5 W; Beam: 330°; Dimmable: No; Input: 220-240 Vac; Base: R7s; IP: 20; Flux: 2000 lm; PF: 0,9; Tc: 2700 K; Ra: 80; LED Warranty: G2. Dimensional characteristics - Dimensiones; L: 118 mm; ø: 29 mm. Lighting and photometric features - Beam opening: 330°; Flux: 2000 lm; CCT nominal colour temperature: 2700 K; Colour of the light: Warm light; Colour rendering index: 80; Lifespan: 15000 h; LED lifespan: L70B50; Trigger time: <0,2 s; Heating time up to 60% of full efficiency: Instant Full Light; Mercury: 0 mg. Electrical characteristics - Rated power: 15.5 W; Input voltage: 220-240 Vac; Frequency: 50 Hz; Dimmable: No; Power factor (PF): 0,9; Input current: 0.07 A; Weighted energy consumption: 16 kWh/1000h; Energy efficiency class: E; Operating temperature: -25°C / +35°C; Equivalence with incandescent lamp: 126. LED Warranty - G2: Up to 2 years ; (4000h/year) *4000h = 11h a day x 365 days. ; Without limitations on the duration of use for the first year, provided the observance of the installation conditions. European Directives - 2009/125/EC * Ecodesign; 2011/65/EU * RoHS; 2012/19/EU * RAEE; 2014/30/EU * EMC; 2014/35/EU * LVD; 2015/863 * Amending RoHS; 2017/1369 * Regulation for Energy Labelling; 2019/2015 * Regulation for Energy Labelling; 2019/2020 * Regulation for Ecodesign; 2021/340 * Amending Reg. Energy Labelling; 2021/341 * Amending Reg. Ecodesign. Product standards - CEI EN 55015:2020 (+A11:2020); CEI EN 60968:2016; CEI EN 61000-3-2:2019 (+A1:2021); CEI EN 61000-3-3:2014 (+EC1:2014/+EC2:2016/+A1:2021/+A2:2022); CEI EN 61547:2010; CEI EN 62031:2021 (+A11:2022); CEI EN 62471:2010; IEC/TR 62471-2:2009; CEI EN 62560:2013 (+A1:2017/+A11:2020); CEI 34-141:2014. Logistics data - Item net weight: 50 gr; Barcode single item: 8011905922801; Number of pieces multiple pack: 10; Barcode multiple pack: 8011905932107; Minimum order quantity: 10.
