Features
Surface corner profile in PMMA with internal aluminium guide to fix LED strips to.
The compact size suggests it can be used in shop windows, display cases and on shelves.
CAN BE USED WITH LED STRIPS WITH MAXIMUM WIDTH:
8 mm
MAXIMUM POWER:
10W/m
Installation
Surface.
It is attached with clips.
Cabling can be in line with the profile or exit the side of the profile.
Material
White PMMA profile; aluminium guide.
Accessories
Every 2 metre bar is complete with 2 sets of end caps (with and without hole) and 2 sets of mounting clips.
Packaging
Supplied in packages of 5 bars, each one measuring 2 meters complete with screen and accessories.
Spare accessories for additional cutting available with a separate code.
Dimensional characteristics
Electrical characteristics
Operating temperature
-15°C / +35°C
European Directives
2011/65/EU * RoHS
2015/863 * Amending RoHS
Logistics data
Barcode single item
8011905912772
Number of pieces multiple pack
5
Product sheet
Tender text
Extended
Compact
P01F-S-PF-200 - SURFACE PROFILES: P01F
Features
Surface corner profile in PMMA with internal aluminium guide to fix LED strips to.
The compact size suggests it can be used in shop windows, display cases and on shelves.
CAN BE USED WITH LED STRIPS WITH MAXIMUM WIDTH:
8 mm
MAXIMUM POWER:
10W/m
Installation
Surface.
It is attached with clips.
Cabling can be in line with the profile or exit the side of the profile.
Material
White PMMA profile; aluminium guide.
Accessories
Every 2 metre bar is complete with 2 sets of end caps (with and without hole) and 2 sets of mounting clips.
Packaging
Supplied in packages of 5 bars, each one measuring 2 meters complete with screen and accessories.
Spare accessories for additional cutting available with a separate code.

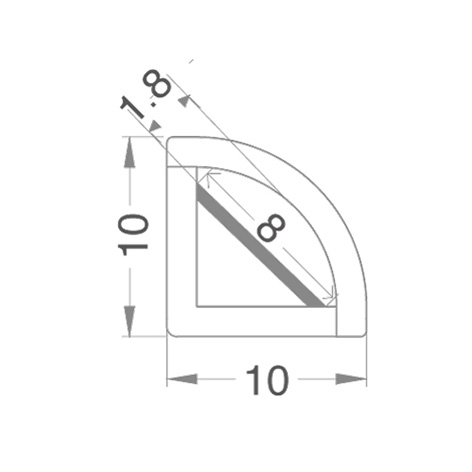

Dimensional characteristics
Dimensiones
L: 2000 mm
L1: 10 mm
H: 10 mm
Electrical characteristics
Operating temperature: -15°C / +35°C
European Directives
2011/65/EU * RoHS
2015/863 * Amending RoHS
Logistics data
Barcode single item: 8011905912772
Number of pieces multiple pack: 5
P01F-S-PF-200 - SURFACE PROFILES: P01F
Features: Surface corner profile in PMMA with internal aluminium guide to fix LED strips to. The compact size suggests it can be used in shop windows, display cases and on shelves. CAN BE USED WITH LED STRIPS WITH MAXIMUM WIDTH:: 8 mm MAXIMUM POWER:: 10W/m Installation: Surface. It is attached with clips. Cabling can be in line with the profile or exit the side of the profile. Material: White PMMA profile; aluminium guide. Accessories: Every 2 metre bar is complete with 2 sets of end caps (with and without hole) and 2 sets of mounting clips. Packaging: Supplied in packages of 5 bars, each one measuring 2 meters complete with screen and accessories. Spare accessories for additional cutting available with a separate code. Dimensional characteristics - Dimensiones; L: 2000 mm; L1: 10 mm; H: 10 mm. Electrical characteristics - Operating temperature: -15°C / +35°C. European Directives - 2011/65/EU * RoHS; 2015/863 * Amending RoHS. Logistics data - Barcode single item: 8011905912772; Number of pieces multiple pack: 5.
