P024-A-200W
New45° ANGULAR PROFILES: P024
Features

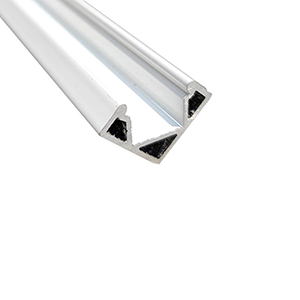

Extruded aluminum profile at 45° angle for corner mounting, complete with diffusing polycarbonate cover.
Available in kits with included accessories or as single bars without accessories.
Recommended for indoor and outdoor (protected) applications and for high power strips in order to better heat dissipation.
CAN BE USED WITH LED STRIPS WITH MAXIMUM WIDTH:
12 mm
MAXIMUM POWER:
15W/m
Installation
Fixed in place with clips.
Material
Profile in aluminum alloy 6060/6063, anodized 15/20 microns.
Packaging
Aluminum-colored profile kit packaging (code ends with “K”): minimum pack of 5 bars with 5 pairs of end caps and 5 pairs of clips.
Single profile codes: available as single bar to be completed with lens, end caps and clips.
Characteristic data
Dimensional characteristics
Logistics data
Barcode single item
8011905344320
Number of pieces multiple pack
5
Product sheet
Tender text
Extended
Compact
P024-A-200W - 45° ANGULAR PROFILES: P024
Features
Extruded aluminum profile at 45° angle for corner mounting, complete with diffusing polycarbonate cover.
Available in kits with included accessories or as single bars without accessories.
Recommended for indoor and outdoor (protected) applications and for high power strips in order to better heat dissipation.
CAN BE USED WITH LED STRIPS WITH MAXIMUM WIDTH:
12 mm
MAXIMUM POWER:
15W/m
Installation
Fixed in place with clips.
Material
Profile in aluminum alloy 6060/6063, anodized 15/20 microns.
Packaging
Aluminum-colored profile kit packaging (code ends with “K”): minimum pack of 5 bars with 5 pairs of end caps and 5 pairs of clips.
Single profile codes: available as single bar to be completed with lens, end caps and clips.
Characteristic data
Color: White
Dimensional characteristics
Dimensiones
L: 2000 mm
L1: 19 mm
H: 19 mm
Logistics data
Barcode single item: 8011905344320
Number of pieces multiple pack: 5
Minimum order quantity: 5
Minimum packaging: 5 / 5
P024-A-200W - 45° ANGULAR PROFILES: P024
Features: Extruded aluminum profile at 45° angle for corner mounting, complete with diffusing polycarbonate cover. Available in kits with included accessories or as single bars without accessories. Recommended for indoor and outdoor (protected) applications and for high power strips in order to better heat dissipation. CAN BE USED WITH LED STRIPS WITH MAXIMUM WIDTH:: 12 mm MAXIMUM POWER: 15W/m Installation: Fixed in place with clips. Material: Profile in aluminum alloy 6060/6063, anodized 15/20 microns. Packaging: Aluminum-colored profile kit packaging (code ends with “K”): minimum pack of 5 bars with 5 pairs of end caps and 5 pairs of clips. Single profile codes: available as single bar to be completed with lens, end caps and clips. Characteristic data - Color: White. Dimensional characteristics - Dimensiones; L: 2000 mm; L1: 19 mm; H: 19 mm. Logistics data - Barcode single item: 8011905344320; Number of pieces multiple pack: 5; Minimum order quantity: 5; Minimum packaging: 5 / 5.
