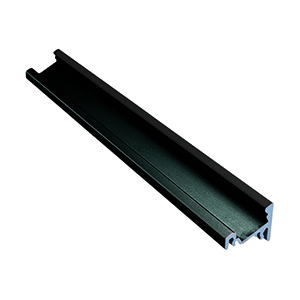

P027-A-200B
NewASYMMETRIC ANGULAR PROFILES: P027
Features
Extruded aluminum profile complete with diffusing polycarbonate cover for corner mounting at 30° or 60° from the surface.
The asymmetrical profile allows you to choose the light direction.
Available in kits with included accessories or as single bars without accessories.
CAN BE USED WITH LED STRIPS WITH MAXIMUM WIDTH:
12 mm
MAXIMUM POWER:
24W/m
Installation
Fixed in place with clips.
Material
Profile in aluminum alloy 6060/6063, anodized 15/20 microns.
UV resistant PC lens.
Packaging
Aluminum-colored profile kit packaging (code ends with “K”): minimum pack of 5 bars with 5 pairs of end caps and 5 pairs of clips.
Single profile codes: available as a single bar to be completed with lens and end caps.
Characteristic data
Dimensional characteristics
Logistics data
Barcode single item
8011905344368
Number of pieces multiple pack
5
Product sheet
Tender text
Extended
Compact
P027-A-200B - ASYMMETRIC ANGULAR PROFILES: P027
Features
Extruded aluminum profile complete with diffusing polycarbonate cover for corner mounting at 30° or 60° from the surface.
The asymmetrical profile allows you to choose the light direction.
Available in kits with included accessories or as single bars without accessories.
CAN BE USED WITH LED STRIPS WITH MAXIMUM WIDTH:
12 mm
MAXIMUM POWER:
24W/m
Installation
Fixed in place with clips.
Material
Profile in aluminum alloy 6060/6063, anodized 15/20 microns.
UV resistant PC lens.
Packaging
Aluminum-colored profile kit packaging (code ends with “K”): minimum pack of 5 bars with 5 pairs of end caps and 5 pairs of clips.
Single profile codes: available as a single bar to be completed with lens and end caps.
Characteristic data
Color: Black
Dimensional characteristics
Dimensiones
L: 2000 mm
L1: 20 mm
H: 16 mm
Logistics data
Barcode single item: 8011905344368
Number of pieces multiple pack: 5
Minimum order quantity: 5
Minimum packaging: 5 / 5
P027-A-200B - ASYMMETRIC ANGULAR PROFILES: P027
Features: Extruded aluminum profile complete with diffusing polycarbonate cover for corner mounting at 30° or 60° from the surface. The asymmetrical profile allows you to choose the light direction. Available in kits with included accessories or as single bars without accessories. CAN BE USED WITH LED STRIPS WITH MAXIMUM WIDTH:: 12 mm MAXIMUM POWER:: 24W/m Installation: Fixed in place with clips. Material: Profile in aluminum alloy 6060/6063, anodized 15/20 microns. UV resistant PC lens. Packaging: Aluminum-colored profile kit packaging (code ends with “K”): minimum pack of 5 bars with 5 pairs of end caps and 5 pairs of clips. Single profile codes: available as a single bar to be completed with lens and end caps. Characteristic data - Color: Black. Dimensional characteristics - Dimensiones; L: 2000 mm; L1: 20 mm; H: 16 mm. Logistics data - Barcode single item: 8011905344368; Number of pieces multiple pack: 5; Minimum order quantity: 5; Minimum packaging: 5 / 5.
