Typology

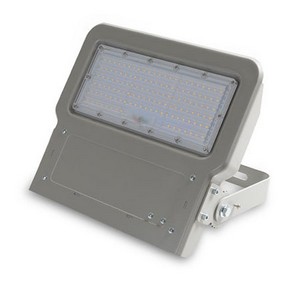

LED projector for outdoor, indoor and construction site application.
Features
Compact dimensions: easy to use and handle.
Equipped with fixing bracket, adjustable on the vertical axis.
It can be connected to motion or twilight sensors.
Material
Grey painted pressed metal body.
Completely sealed IP65 driver.
Notes
Do not use with dimmer.
Free wire for professional use (1 m long).
Characteristic data
Dimensional characteristics
Lighting and photometric features
CCT nominal colour temperature
4000 K
Colour of the light
Natural light
Colour rendering index
>80
Heating time up to 60% of full efficiency
Instant Full Light
Electrical characteristics
Weighted energy consumption
150 kWh/1000h
Operating temperature
-25°C / +35°C

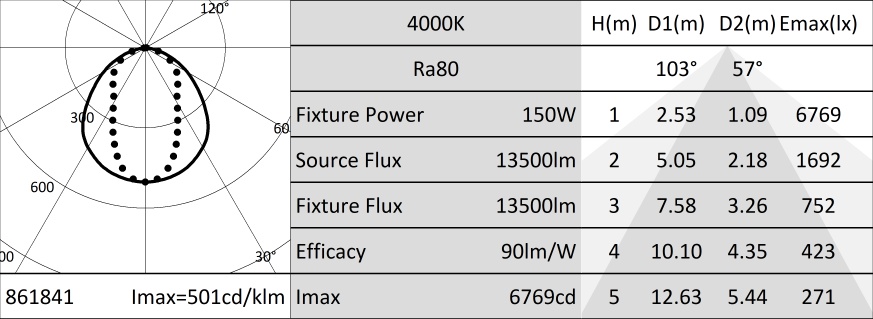

Photometry
Other Infotech
Light source replaceability
Replaceable light source by a professional.
Control gear replaceability
Non-replaceable control gear.
LED Warranty
G3
Up to 3 years
(4000h/year) *4000h = 11h a day x 365 days.
Without limitations on the duration of use for the first year, provided the observance of the installation conditions.
European Directives
2009/125/EC * Ecodesign
2011/65/EU * RoHS
2012/19/EU * RAEE
2014/30/EU * EMC
2014/35/EU * LVD
2015/863 * Amending RoHS
2017/1369 * Regulation for Energy Labelling
2019/2015 * Regulation for Energy Labelling
2019/2020 * Regulation for Ecodesign
2021/340 * Amending Reg. Energy Labelling
2021/341 * Amending Reg. Ecodesign
Product standards
CEI EN 55015:2020 (+A11:2020)
CEI EN 60598-1:2022
CEI EN 60598-2-5:2016
CEI EN 61000-3-2:2019 (+A1:2021)
CEI EN 61000-3-3:2014 (+EC1:2014/+EC2:2016/+A1:2021/+A2:2022)
CEI EN 61547:2010
CEI EN 62031:2021 (+A11:2022)
CEI EN 62471:2010
IEC/TR 62471-2:2009
CEI EN 62493:2015
CEI 34-141:2014
Logistics data
Barcode single item
8011905861841
Number of pieces multiple pack
5
Product sheet
Tender text
Extended
Compact
PANTH-SL1502 - PANTH - SL2
Typology
LED projector for outdoor, indoor and construction site application.
Features
Compact dimensions: easy to use and handle.
Equipped with fixing bracket, adjustable on the vertical axis.
It can be connected to motion or twilight sensors.
Material
Grey painted pressed metal body.
Completely sealed IP65 driver.
Notes
Do not use with dimmer.
Free wire for professional use (1 m long).
Characteristic data
Power: 150 W
Beam: 60°x100°
Dimmable: No
Input: 220-240 Vac
Base: Terminals
IP: 65
Flux: 13500 lm
PF: 0,97
Tc: 4000 K
Ra: >80
LED Warranty: G3
Axis: 6780 cd
IK: IK08
RG: RG1
Color: Grey
Dimensional characteristics
Dimensiones
L: 360 mm
L1: 377 mm
H: 95.5 mm
Lighting and photometric features
Beam opening: 60°x100°
Flux: 13500 lm
CCT nominal colour temperature: 4000 K
Colour of the light: Natural light
Colour rendering index: >80
Lifespan: 40000 h
LED lifespan: L70B20
Trigger time: <0,2 s
Heating time up to 60% of full efficiency: Instant Full Light
Electrical characteristics
Rated power: 150 W
Input voltage: 220-240 Vac
Frequency: 50-60 Hz
Dimmable: No
Power factor (PF): 0,97
Input current: 0.67 A
Weighted energy consumption: 150 kWh/1000h
Number of cycles: 100000
Operating temperature: -25°C / +35°C
LED Warranty
G3: Up to 3 years
(4000h/year) *4000h = 11h a day x 365 days.
Without limitations on the duration of use for the first year, provided the observance of the installation conditions.
European Directives
2009/125/EC * Ecodesign
2011/65/EU * RoHS
2012/19/EU * RAEE
2014/30/EU * EMC
2014/35/EU * LVD
2015/863 * Amending RoHS
2017/1369 * Regulation for Energy Labelling
2019/2015 * Regulation for Energy Labelling
2019/2020 * Regulation for Ecodesign
2021/340 * Amending Reg. Energy Labelling
2021/341 * Amending Reg. Ecodesign
Product standards
CEI EN 55015:2020 (+A11:2020)
CEI EN 60598-1:2022
CEI EN 60598-2-5:2016
CEI EN 61000-3-2:2019 (+A1:2021)
CEI EN 61000-3-3:2014 (+EC1:2014/+EC2:2016/+A1:2021/+A2:2022)
CEI EN 61547:2010
CEI EN 62031:2021 (+A11:2022)
CEI EN 62471:2010
IEC/TR 62471-2:2009
CEI EN 62493:2015
CEI 34-141:2014
Logistics data
Item net weight: 2700 gr
Barcode single item: 8011905861841
Number of pieces multiple pack: 5
Minimum order quantity: 1
Other Infotech
Reflector: Yes
Light source replaceability: Replaceable light source by a professional.
Control gear replaceability: Non-replaceable control gear.
PANTH-SL1502 - PANTH - SL2
Typology: LED projector for outdoor, indoor and construction site application. Features: Compact dimensions: easy to use and handle. Equipped with fixing bracket, adjustable on the vertical axis. It can be connected to motion or twilight sensors. Material: Grey painted pressed metal body. Completely sealed IP65 driver. Notes: Do not use with dimmer. Free wire for professional use (1 m long). Characteristic data - Power: 150 W; Beam: 60°x100°; Dimmable: No; Input: 220-240 Vac; Base: Terminals; IP: 65; Flux: 13500 lm; PF: 0,97; Tc: 4000 K; Ra: >80; LED Warranty: G3; Axis: 6780 cd; IK: IK08; RG: RG1; Color: Grey. Dimensional characteristics - Dimensiones; L: 360 mm; L1: 377 mm; H: 95.5 mm. Lighting and photometric features - Beam opening: 60°x100°; Flux: 13500 lm; CCT nominal colour temperature: 4000 K; Colour of the light: Natural light; Colour rendering index: >80; Lifespan: 40000 h; LED lifespan: L70B20; Trigger time: <0,2 s; Heating time up to 60% of full efficiency: Instant Full Light. Electrical characteristics - Rated power: 150 W; Input voltage: 220-240 Vac; Frequency: 50-60 Hz; Dimmable: No; Power factor (PF): 0,97; Input current: 0.67 A; Weighted energy consumption: 150 kWh/1000h; Number of cycles: 100000; Operating temperature: -25°C / +35°C. LED Warranty - G3: Up to 3 years ; (4000h/year) *4000h = 11h a day x 365 days. ; Without limitations on the duration of use for the first year, provided the observance of the installation conditions. European Directives - 2009/125/EC * Ecodesign; 2011/65/EU * RoHS; 2012/19/EU * RAEE; 2014/30/EU * EMC; 2014/35/EU * LVD; 2015/863 * Amending RoHS; 2017/1369 * Regulation for Energy Labelling; 2019/2015 * Regulation for Energy Labelling; 2019/2020 * Regulation for Ecodesign; 2021/340 * Amending Reg. Energy Labelling; 2021/341 * Amending Reg. Ecodesign. Product standards - CEI EN 55015:2020 (+A11:2020); CEI EN 60598-1:2022; CEI EN 60598-2-5:2016; CEI EN 61000-3-2:2019 (+A1:2021); CEI EN 61000-3-3:2014 (+EC1:2014/+EC2:2016/+A1:2021/+A2:2022); CEI EN 61547:2010; CEI EN 62031:2021 (+A11:2022); CEI EN 62471:2010; IEC/TR 62471-2:2009; CEI EN 62493:2015; CEI 34-141:2014. Logistics data - Item net weight: 2700 gr; Barcode single item: 8011905861841; Number of pieces multiple pack: 5; Minimum order quantity: 1. Other Infotech - Reflector: Yes; Light source replaceability: Replaceable light source by a professional; Control gear replaceability: Non-replaceable control gear.
