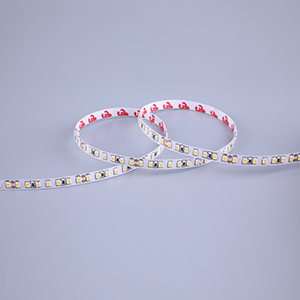

DURASTRIP SELECT 140 IP20
DURASTRIP SELECT were designed to satisfy the range of use that requires an excellent product as well as cost optimization.
The SELECT range is produced with a single circuit substrate, a leaner production that takes advantage of production progress to obtain efficient strips with excellent light emission and colour control over time.
Available also in IP65 version.
Installation
The 11W/m, 14W/m, 19W/m strips can be installed directly on the application surface using the included double-sided 3M adhesive or fixing bridges.
When using double-sided tape degrease the application surface adequately.
We recommend the using aluminium profiles with the 24W/m strips, in order to optimize heat dissipation.Strips can be cut to size by following the cutting indications printed on the strips.
Usage information
Dimmable 0-100% Flicker Free
DALI - DMX - 1-10
Analogue and digital domotic control systems
Push Dali with ZKCDAFF controllers
CASAMBI compatible
Power supply
Max current for single power supply: 4A.
Packaging
Packaged in 5 meters reels.
The 24W/m=96W strip is packaged in a 4 m reel.LED
LED 2835
140 LED/m
SDCM from <2 to <5.
Connections
IP20: terminals with free wires.
