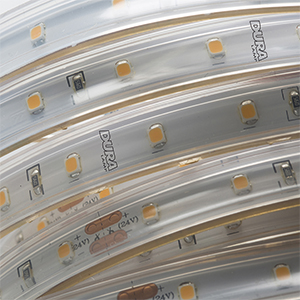

DURASTRIP SELECT were designed to satisfy the range of use that requires an excellent product as well as cost optimization.
The SELECT range is produced with a single circuit substrate, a leaner production that takes advantage of production progress to obtain efficient strips with excellent light emission and colour control over time.
Available also in IP20 version.
Installation
The 25W and 60W strips can be installed directly on the application surface using the included double-sided 3M adhesive or bridges:
we recommend the use of aluminium profiles only with 96W strips, in order to optimize heat dissipation.
When using double-sided tape degrease the application surface adequately.
Strips can be cut to size by following the cutting indications printed on the strips.
For IP65/IP68 strips, restore the IP protection after cutting.
Usage information
Dimmable 0-100% Flicker Free
DALI - DMX - 1-10
Analogue and digital domotic control systems
Push Dali with ZKCDAFF controllers
CASAMBI compatible
Power supply
Max current for single power supply: 4A.
Packaging
Packaged in 5 meters reels.
The 24W/m=96W strip is packaged in a 4 m reel.LED
LED 2835
SDCM from <2 to <5.
Connections

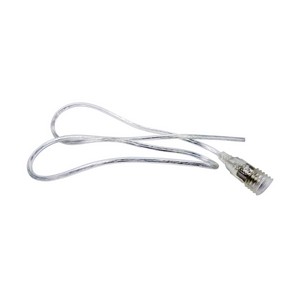

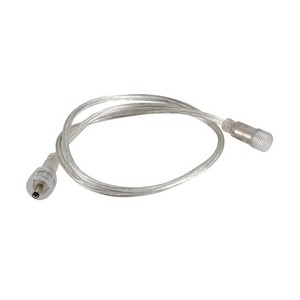

IP65: complete with a 15 cm long IP65 M/F cable on 2 sides.
