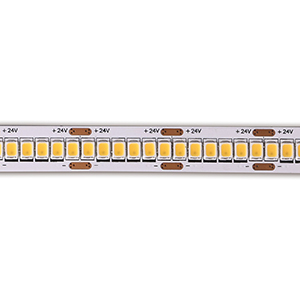

High Density LED strips also have an Integrated Circuit inside the LED package. The integrated circuit is a constant current regulator to compensate for voltage fluctuations and to keep the light emission uniform even over long distances. Integrating the circuit eliminates the need for external resistors which are usually fixed to the substrate between one LED and another and allows for closer positioning and adjustment of the LED sources for uniform and uninterrupted emission with superior performance in terms of lumen/watts.
Installation
Complete with 3M double-sided tape to attach to the surface. When using double-sided tape degrease the application surface adequately. Always use with aluminium profiles for heat dissipation.
Usage information
Dimmable 0-100% Flicker Free DALI - DMX - 1-10 Analogue and digital domotic control systems Push Dali with ZKCDAFF controllers CASAMBI compatible
Packaging
Packaged in 5 meters reels.
LED
LED 2835 300 LED/m Ra>95 Lifetime: >50,000h Warranty: 5 years
Colour of the light
Choice of white colour temperatures.
Binning
ANSI/SDCM: 2 step.
Connections
IP20: terminals with free wires. Maximum connection length 5 m. Max 4A. For longer connections, connect in series or parallel, see diagram. Strips can be cut to size by following the cutting indications printed on the strips.
DMX WALL TOUCH DIMMER FOR WHITE LIGHT DURASTRIPEach channel can have 256 levels of light variation and 4 favourite scenes can be saved. "Memory" function: the last colour temperature chosen is recalled when the light is switched back on again; 3 scenes can be saved.
DMX CONTROLLER 4 CHANNELSCan be used with DURASTRIP RGB + white (or 4 channels). Connection diagrams are available at site (in the product datasheet). ZKCDMXWFF: max current 4A / channel. ZKCDMXW: max current 5A / channel.
