Linear systems - DuraNeonFlex - DuraNeonFlex-Q VERT EVO

DuraNeonFlex-Q VERT EVO

Models

Accessories

A new technological step for the DuraNeonFlex-Q series: greater efficiency, a soft-touch appearance, VERT curvature, and a very compact size: 10x20 mm.
The most modern materials allow curves with a diameter of up to 120 mm.

Typology

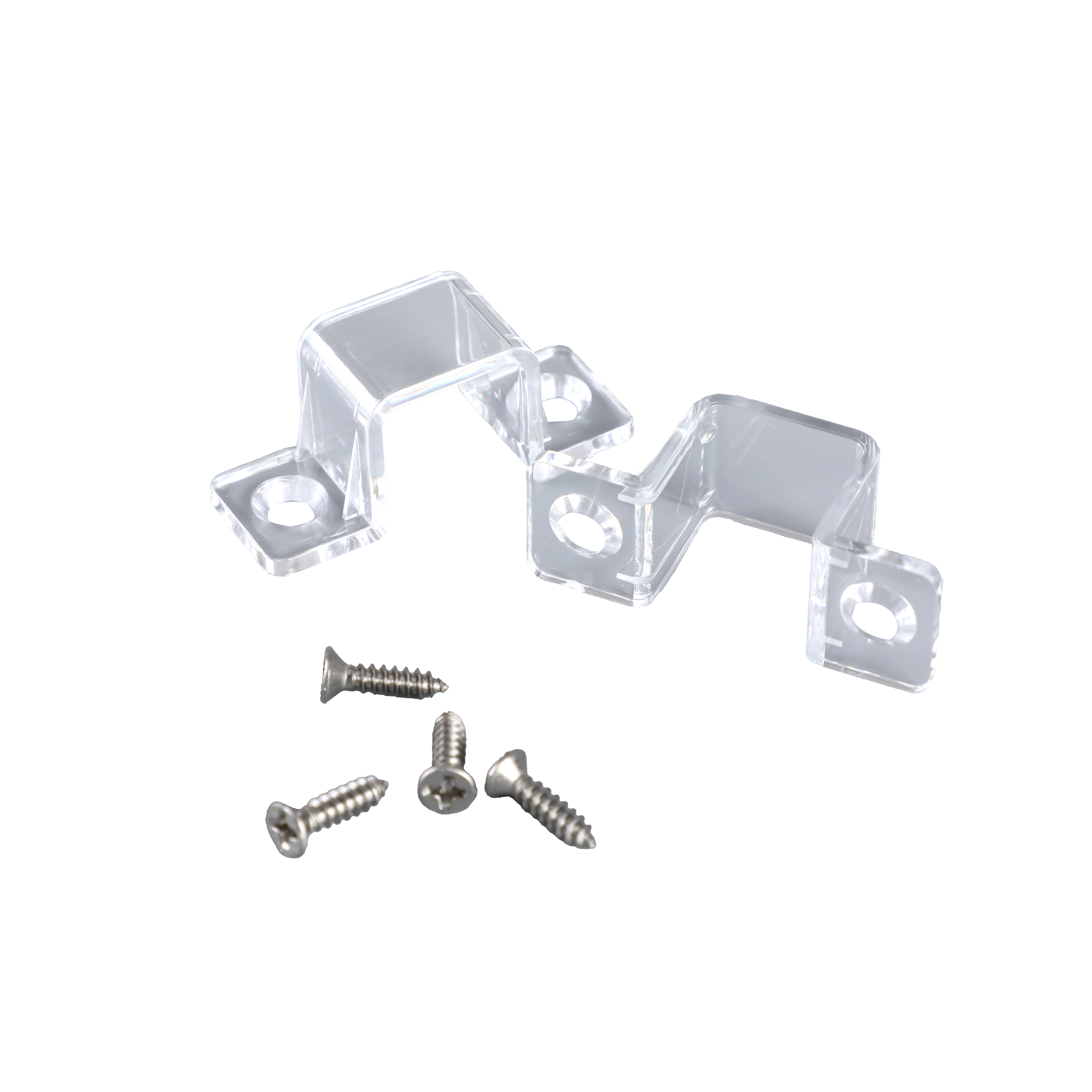

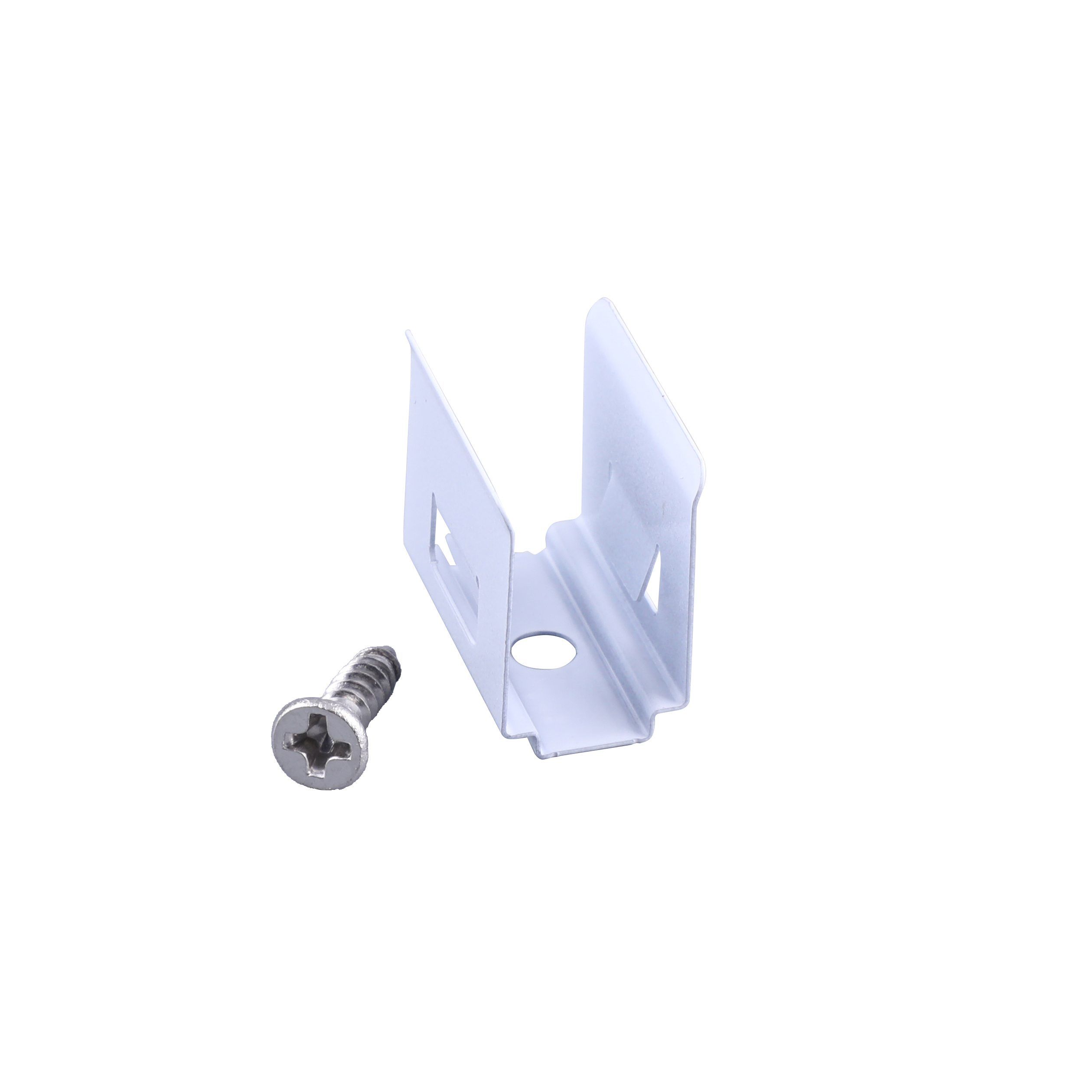

Mounted with clips or with rigid and flexible profiles.
This DNF can be cut at any point (free cut).
Supplied with free‑wire connection on one side and an end cap on the other.
Fitted with different outputs for power supply.

Material

Extremely flexible, impact resistant and weatherproof extruded silicone.

Usage information

Dimmable 0-100% Flicker Free
DALI - DMX - 1-10
Analogue and digital domotic control systems
Push Dali with ZKCDAFF controllers
CASAMBI compatible

Packaging

Packaged in 5 meters reels.

LED

SDCM from <2 to <3.

DuraNeonFlex-Q EVO - VERT

New

24 Vdc

Ra 80

50000 h
L70B50

IP67

IK07

-25°C
+35°C

Risk
Group 1

120°

G5
h24

W/m

lm/m

N° Led/m

Packaging

Article

* Minimum order quantity

New

DNF Q VERT EVO wiring kit

Accessory required only in case of cutting and new connection.

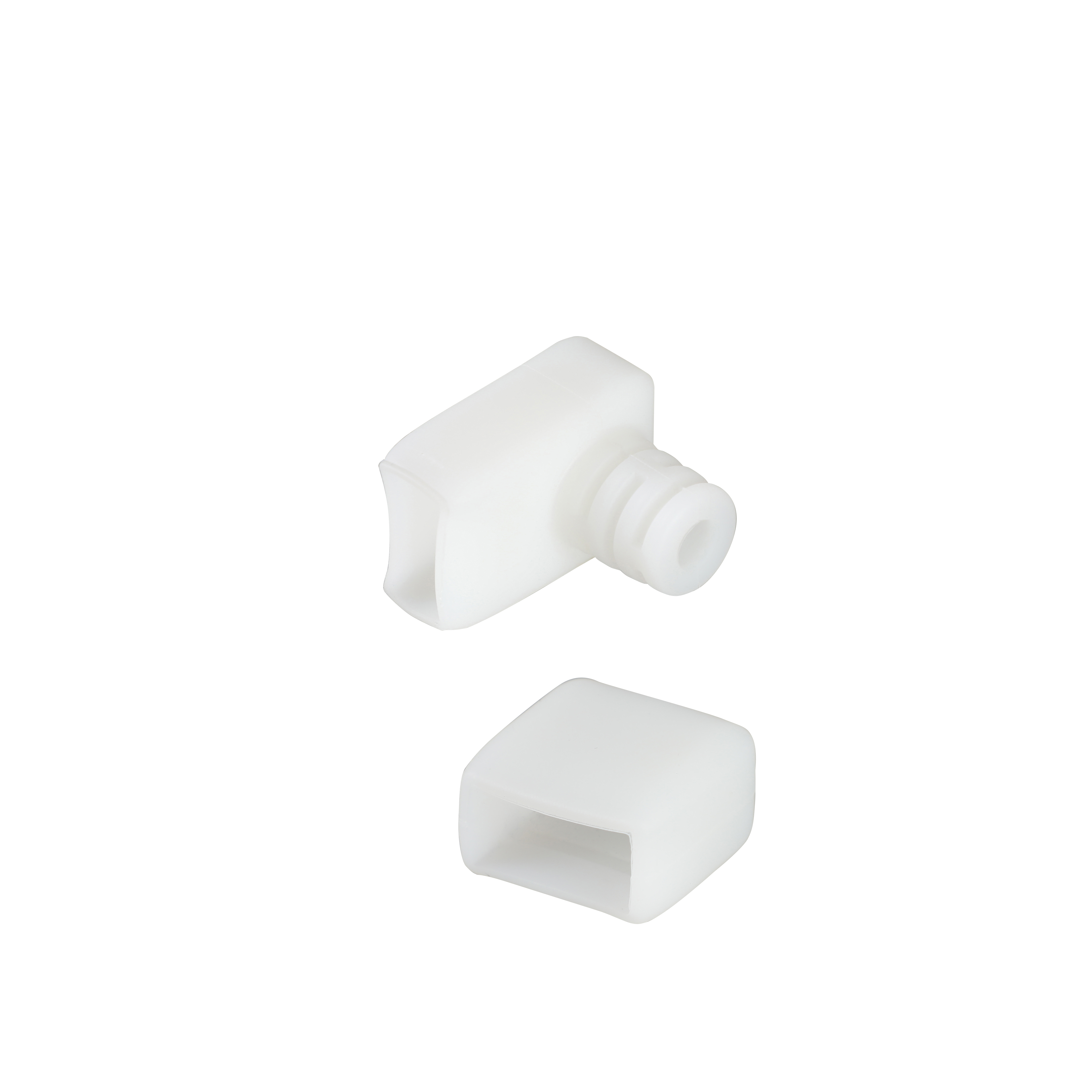

The kit includes: cable (30 cm), perforated cap for “in-line” (axial) power input, and silicone end cap.
This connection kit corresponds to suffix A in the product codes with customized lengths.

8011905355265

1 / 1

Article

KT15UVL1NEW

DNF Q VERT EVO wiring kit

New

DNF Q VERT EVO wiring kit

Accessory required only in case of cutting and new connection.
The kit includes: cable (30 cm), perforated cap for “side” (orthogonal, left‑side) power input, and silicone end cap.
This connection kit corresponds to suffix B in the product codes with customized lengths.

8011905355272

1 / 1

Article

KT15UVL2NEW

DNF Q VERT EVO wiring kit

New

DNF Q VERT EVO wiring kit

Accessory required only in case of cutting and new connection.
The kit includes: cable (30 cm), perforated cap for bottom power input (opposite side of the luminous surface) and silicone end cap.
This connection kit corresponds to suffix C in the product codes with customized lengths.

8011905355289

1 / 1

Article

KT15UVL3NEW

DNF Q VERT EVO wiring kit
