Typology
Adjustable fitting complete with adaptor for track mounting and E27 lampholder.
Features
Satisfies the needs of those who prefer a track-mounted luminaire for replaceable lamps.
Can be used with Eurostandard Plus tracks as well as with other brands: Staff, Nordlux, Nordic, Global, Nuco etc.
Adjustable from +90° to -90° on the vertical plane and 350° on the horizontal plane.
Suitable for PAR38 lamps: see the list of lamps that can be fitted.
Max 30 W.
Installation
Mounting on 3 phases electrical tracks; fixtures equipped with a safety lock to fix to the tracks.
Material
Die-cast painted aluminium body, white colour; steel adjustable arm.
Characteristic data
Dimensional characteristics
Electrical characteristics
Operating temperature
-25°C / +35°C
European Directives
2009/125/EC * Ecodesign
2011/65/EU * RoHS
2012/19/EU * RAEE
2014/30/EU * EMC
2014/35/EU * LVD
2015/863 * Amending RoHS
2017/1369 * Regulation for Energy Labelling
2019/2015 * Regulation for Energy Labelling
2019/2020 * Regulation for Ecodesign
2021/340 * Amending Reg. Energy Labelling
2021/341 * Amending Reg. Ecodesign
Product standards
CEI EN 55015:2020 (+A11:2020)
CEI EN 60598-1:2022
CEI EN 60598-2-1:2022
CEI EN 61000-3-2:2019 (+A1:2021)
CEI EN 61000-3-3:2014 (+EC1:2014/+EC2:2016/+A1:2021/+A2:2022)
CEI EN 61547:2010
CEI EN 62031:2021 (+A11:2022)
CEI EN 62471:2010
IEC/TR 62471-2:2009
CEI EN 62493:2015
CEI 34-141:2014
Logistics data
Barcode single item
8011905935252
Product sheet
Tender text
Extended
Compact

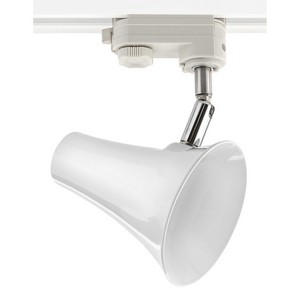

SP01-W - TRACK MOUNTING PROJECTOR FOR REPLACEABLE LAMP
Typology
Adjustable fitting complete with adaptor for track mounting and E27 lampholder.
Features
Satisfies the needs of those who prefer a track-mounted luminaire for replaceable lamps.
Can be used with Eurostandard Plus tracks as well as with other brands: Staff, Nordlux, Nordic, Global, Nuco etc.
Adjustable from +90° to -90° on the vertical plane and 350° on the horizontal plane.
Suitable for PAR38 lamps: see the list of lamps that can be fitted.
Max 30 W.
Installation
Mounting on 3 phases electrical tracks; fixtures equipped with a safety lock to fix to the tracks.
Material
Die-cast painted aluminium body, white colour; steel adjustable arm.
Characteristic data
Dimmable: No
Base: E27
IP: 20
Color: White

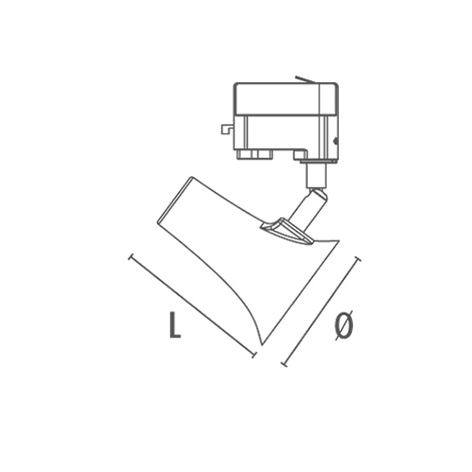

Dimensional characteristics
Dimensiones
L: 127 mm
ø: 108 mm
Electrical characteristics
Dimmable: No
Operating temperature: -25°C / +35°C
European Directives
2009/125/EC * Ecodesign
2011/65/EU * RoHS
2012/19/EU * RAEE
2014/30/EU * EMC
2014/35/EU * LVD
2015/863 * Amending RoHS
2017/1369 * Regulation for Energy Labelling
2019/2015 * Regulation for Energy Labelling
2019/2020 * Regulation for Ecodesign
2021/340 * Amending Reg. Energy Labelling
2021/341 * Amending Reg. Ecodesign
Product standards
CEI EN 55015:2020 (+A11:2020)
CEI EN 60598-1:2022
CEI EN 60598-2-1:2022
CEI EN 61000-3-2:2019 (+A1:2021)
CEI EN 61000-3-3:2014 (+EC1:2014/+EC2:2016/+A1:2021/+A2:2022)
CEI EN 61547:2010
CEI EN 62031:2021 (+A11:2022)
CEI EN 62471:2010
IEC/TR 62471-2:2009
CEI EN 62493:2015
CEI 34-141:2014
Logistics data
Item net weight: 290 gr
Barcode single item: 8011905935252
Minimum order quantity: 1
SP01-W - TRACK MOUNTING PROJECTOR FOR REPLACEABLE LAMP
Typology: Adjustable fitting complete with adaptor for track mounting and E27 lampholder. Features: Satisfies the needs of those who prefer a track-mounted luminaire for replaceable lamps. Can be used with Eurostandard Plus tracks as well as with other brands: Staff, Nordlux, Nordic, Global, Nuco etc. Adjustable from +90° to -90° on the vertical plane and 350° on the horizontal plane. Suitable for PAR38 lamps: see the list of lamps that can be fitted. Max 30 W. Installation: Mounting on 3 phases electrical tracks; fixtures equipped with a safety lock to fix to the tracks. Material: Die-cast painted aluminium body, white colour; steel adjustable arm. Characteristic data - Dimmable: No; Base: E27; IP: 20; Color: White. Dimensional characteristics - Dimensiones; L: 127 mm; ø: 108 mm. Electrical characteristics - Dimmable: No; Operating temperature: -25°C / +35°C. European Directives - 2009/125/EC * Ecodesign; 2011/65/EU * RoHS; 2012/19/EU * RAEE; 2014/30/EU * EMC; 2014/35/EU * LVD; 2015/863 * Amending RoHS; 2017/1369 * Regulation for Energy Labelling; 2019/2015 * Regulation for Energy Labelling; 2019/2020 * Regulation for Ecodesign; 2021/340 * Amending Reg. Energy Labelling; 2021/341 * Amending Reg. Ecodesign. Product standards - CEI EN 55015:2020 (+A11:2020); CEI EN 60598-1:2022; CEI EN 60598-2-1:2022; CEI EN 61000-3-2:2019 (+A1:2021); CEI EN 61000-3-3:2014 (+EC1:2014/+EC2:2016/+A1:2021/+A2:2022); CEI EN 61547:2010; CEI EN 62031:2021 (+A11:2022); CEI EN 62471:2010; IEC/TR 62471-2:2009; CEI EN 62493:2015; CEI 34-141:2014. Logistics data - Item net weight: 290 gr; Barcode single item: 8011905935252; Minimum order quantity: 1.
