Typology

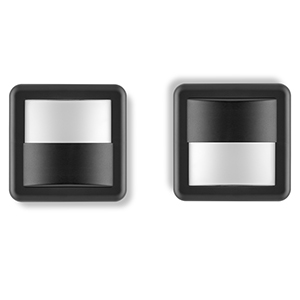

Wall mounted surface pathway markers.
Features
Three light shielding versions for different lighting effects: full light, downwards and up&down.
Installation
Surface with the bracket supplied.
Material
Heat-resistant plastic body; opal polycarbonate screen.
Applications
Pathway marker.
Characteristic data
Dimensional characteristics
Lighting and photometric features
CCT nominal colour temperature
4000 K
Colour of the light
Natural light
Colour rendering index
>80
Heating time up to 60% of full efficiency
Instant Full Light
Electrical characteristics
Weighted energy consumption
4 kWh/1000h
Operating temperature
-25°C / +35°C
Other Infotech
LED Warranty
G2
Up to 2 years
(4000h/year) *4000h = 11h a day x 365 days.
Without limitations on the duration of use for the first year, provided the observance of the installation conditions.
European Directives
2009/125/EC * Ecodesign
2011/65/EU * RoHS
2012/19/EU * RAEE
2014/30/EU * EMC
2014/35/EU * LVD
2015/863 * Amending RoHS
2017/1369 * Regulation for Energy Labelling
2019/2015 * Regulation for Energy Labelling
2019/2020 * Regulation for Ecodesign
2021/340 * Amending Reg. Energy Labelling
2021/341 * Amending Reg. Ecodesign
Product standards
CEI EN 55015:2020 (+A11:2020)
CEI EN 60598-1:2022
CEI EN 60598-2-1:2022
CEI EN 61000-3-2:2019 (+A1:2021)
CEI EN 61000-3-3:2014 (+EC1:2014/+EC2:2016/+A1:2021/+A2:2022)
CEI EN 61547:2010
CEI EN 62031:2021 (+A11:2022)
CEI EN 62471:2010
IEC/TR 62471-2:2009
CEI EN 62493:2015
CEI 34-141:2014
Logistics data
Barcode single item
8011905927462
Number of pieces multiple pack
50
Barcode multiple pack
8011905932527
Product sheet
Tender text
Extended
Compact
SW002N - SEGNASENTIERO IP65 LUCE 50
Typology
Wall mounted surface pathway markers.
Features
Three light shielding versions for different lighting effects: full light, downwards and up&down.
Installation
Surface with the bracket supplied.
Material
Heat-resistant plastic body; opal polycarbonate screen.
Applications
Pathway marker.
Characteristic data
Power: 4 W
Beam: 120°
Dimmable: No
Input: 220-240 Vac
Base: Wire
IP: 65
Flux: 180 lm
PF: 0,51
Tc: 4000 K
Ra: >80
LED Warranty: G2
RG: RG0
Color: Black
Dimensional characteristics
Dimensiones
L: 140 mm
L1: 140 mm
H: 51 mm
Lighting and photometric features
Beam opening: 120°
Flux: 180 lm
CCT nominal colour temperature: 4000 K
Colour of the light: Natural light
Colour rendering index: >80
Lifespan: 25000 h
LED lifespan: L70B30
Trigger time: <0,2 s
Heating time up to 60% of full efficiency: Instant Full Light
Electrical characteristics
Rated power: 4 W
Input voltage: 220-240 Vac
Frequency: 50-60 Hz
Dimmable: No
Power factor (PF): 0,51
Input current: 0.04 A
Weighted energy consumption: 4 kWh/1000h
Number of cycles: 100000
Operating temperature: -25°C / +35°C
LED Warranty
G2: Up to 2 years
(4000h/year) *4000h = 11h a day x 365 days.
Without limitations on the duration of use for the first year, provided the observance of the installation conditions.
European Directives
2009/125/EC * Ecodesign
2011/65/EU * RoHS
2012/19/EU * RAEE
2014/30/EU * EMC
2014/35/EU * LVD
2015/863 * Amending RoHS
2017/1369 * Regulation for Energy Labelling
2019/2015 * Regulation for Energy Labelling
2019/2020 * Regulation for Ecodesign
2021/340 * Amending Reg. Energy Labelling
2021/341 * Amending Reg. Ecodesign
Product standards
CEI EN 55015:2020 (+A11:2020)
CEI EN 60598-1:2022
CEI EN 60598-2-1:2022
CEI EN 61000-3-2:2019 (+A1:2021)
CEI EN 61000-3-3:2014 (+EC1:2014/+EC2:2016/+A1:2021/+A2:2022)
CEI EN 61547:2010
CEI EN 62031:2021 (+A11:2022)
CEI EN 62471:2010
IEC/TR 62471-2:2009
CEI EN 62493:2015
CEI 34-141:2014
Logistics data
Item net weight: 171 gr
Barcode single item: 8011905927462
Number of pieces multiple pack: 50
Barcode multiple pack: 8011905932527
Minimum order quantity: 1
Other Infotech
Reflector: Yes
SW002N - SEGNASENTIERO IP65 LUCE 50
Typology: Wall mounted surface pathway markers. Features: Three light shielding versions for different lighting effects: full light, downwards and up&down. Installation: Surface with the bracket supplied. Material: Heat-resistant plastic body; opal polycarbonate screen. Applications: Pathway marker. Characteristic data - Power: 4 W; Beam: 120°; Dimmable: No; Input: 220-240 Vac; Base: Wire; IP: 65; Flux: 180 lm; PF: 0,51; Tc: 4000 K; Ra: >80; LED Warranty: G2; RG: RG0; Color: Black. Dimensional characteristics - Dimensiones; L: 140 mm; L1: 140 mm; H: 51 mm. Lighting and photometric features - Beam opening: 120°; Flux: 180 lm; CCT nominal colour temperature: 4000 K; Colour of the light: Natural light; Colour rendering index: >80; Lifespan: 25000 h; LED lifespan: L70B30; Trigger time: <0,2 s; Heating time up to 60% of full efficiency: Instant Full Light. Electrical characteristics - Rated power: 4 W; Input voltage: 220-240 Vac; Frequency: 50-60 Hz; Dimmable: No; Power factor (PF): 0,51; Input current: 0.04 A; Weighted energy consumption: 4 kWh/1000h; Number of cycles: 100000; Operating temperature: -25°C / +35°C. LED Warranty - G2: Up to 2 years ; (4000h/year) *4000h = 11h a day x 365 days. ; Without limitations on the duration of use for the first year, provided the observance of the installation conditions. European Directives - 2009/125/EC * Ecodesign; 2011/65/EU * RoHS; 2012/19/EU * RAEE; 2014/30/EU * EMC; 2014/35/EU * LVD; 2015/863 * Amending RoHS; 2017/1369 * Regulation for Energy Labelling; 2019/2015 * Regulation for Energy Labelling; 2019/2020 * Regulation for Ecodesign; 2021/340 * Amending Reg. Energy Labelling; 2021/341 * Amending Reg. Ecodesign. Product standards - CEI EN 55015:2020 (+A11:2020); CEI EN 60598-1:2022; CEI EN 60598-2-1:2022; CEI EN 61000-3-2:2019 (+A1:2021); CEI EN 61000-3-3:2014 (+EC1:2014/+EC2:2016/+A1:2021/+A2:2022); CEI EN 61547:2010; CEI EN 62031:2021 (+A11:2022); CEI EN 62471:2010; IEC/TR 62471-2:2009; CEI EN 62493:2015; CEI 34-141:2014. Logistics data - Item net weight: 171 gr; Barcode single item: 8011905927462; Number of pieces multiple pack: 50; Barcode multiple pack: 8011905932527; Minimum order quantity: 1. Other Infotech - Reflector: Yes.
