Typology
Adjustable LED track spotlights for installation on a 3-circuit track.
UGR >19.
Features
Adjustable from 0° to -90° on the vertical plane and 350° on the horizontal plane.
Three different dimensions and power choices to cover all requirements.
Available in both warm and natural white colour temperature.
Electronic power supply integrated in the track adapter.
Installation
Mounting on 3 phases electrical tracks; fixtures equipped with a safety lock to fix to the tracks.
Material
Die-cast painted aluminium body; black or white colour.
Beam
LED Chip on Board, high efficiency, Ra 90.
Notes
Do not use with dimmer.
Characteristic data
Dimensional characteristics
Lighting and photometric features
CCT nominal colour temperature
3000 K
Colour of the light
Warm light
Heating time up to 60% of full efficiency
Instant Full Light
Electrical characteristics
Operating temperature
-25°C / +35°C

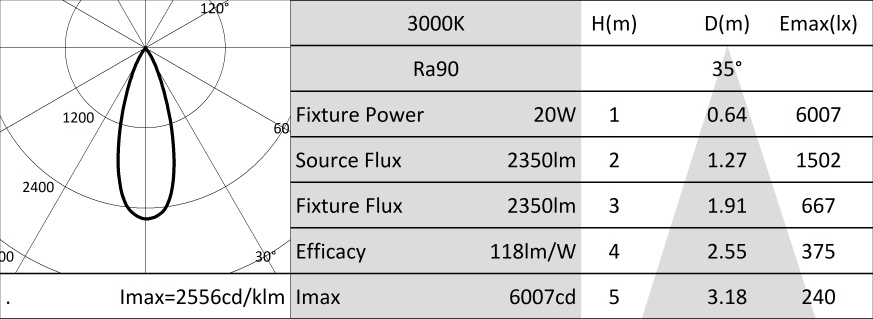

Photometry
Other Infotech
LED Warranty
G5h24
Full Guarantee
5 years
(24h/24h) Without limitations on the duration of use for the first year, provided the observance of the installation conditions.
European Directives
2009/125/EC * Ecodesign
2011/65/EU * RoHS
2012/19/EU * RAEE
2014/30/EU * EMC
2014/35/EU * LVD
2015/863 * Amending RoHS
2017/1369 * Regulation for Energy Labelling
2019/2015 * Regulation for Energy Labelling
2019/2020 * Regulation for Ecodesign
2021/340 * Amending Reg. Energy Labelling
2021/341 * Amending Reg. Ecodesign
Product standards
CEI EN 55015:2020 (+A11:2020)
CEI EN 60598-1:2022
CEI EN 60598-2-1:2022
CEI EN 61000-3-2:2019 (+A1:2021)
CEI EN 61000-3-3:2014 (+EC1:2014/+EC2:2016/+A1:2021/+A2:2022)
CEI EN 61547:2010
CEI EN 62031:2021 (+A11:2022)
CEI EN 62471:2010
IEC/TR 62471-2:2009
CEI EN 62493:2015
CEI 34-141:2014
Logistics data
Barcode single item
8011905335823
Product sheet
Tender text
Extended
Compact

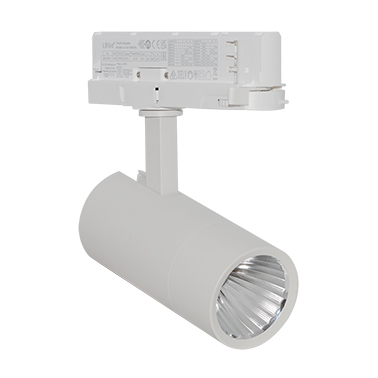

TU60L130-W - UNO - TRACK LIGHT
Typology
Professional LED projectors for three phase track mounting.
Complete with power selection, colour temperature selection and zoom option for spot or wide beam selection.
Selectable powers: 10W, 15W, 20W.
One luminaire replaces 27 configurations and solves all spot or wide-beam lighting needs.
Adjustable from 0° to -90° on the vertical plane and 350° on the horizontal plane.
Electronic power supply integrated in the track adapter.
Features
Two models with 3 selectable powers.
Light colour selector on luminaire body: 2700K-3500K-4000K.
Adjustable 'zoom' optical system for a continuously variable beam from spot 24° to flood 60°.
Installation
Mounting on 3 phases electrical tracks; fixtures equipped with a safety lock to fix to the tracks.
Material
Die-cast painted aluminium body; black or white colour.
Beam
High efficiency Ra>90 LED Chip on Board.
Notes
Do not use with dimmer.
Characteristic data
Power: 20 W
Beam: 36°
Dimmable: No
Input: 220-240 Vac
Base: Eurostandard
IP: 20
Flux: 2350 lm
Axis: 6000 cd
PF: 0.95
UGR: <19
Tc: 3000 K
Ra: 90
LED Warranty: G5h24
RG: RG1
Color: White
Dimensional characteristics
Dimensiones
L: 157 mm
ø: 60 mm
H: 133 mm
Lighting and photometric features
Beam opening: 36°
Flux: 2350 lm
Axis: 6000 cd
CCT nominal colour temperature: 3000 K
Colour of the light: Warm light
Colour rendering index: 90
Lifespan: 50000 h
LED lifespan: L70B20
Trigger time: <0,2 s
Heating time up to 60% of full efficiency: Instant Full Light
UGR: <19
Electrical characteristics
Rated power: 20 W
Input voltage: 220-240 Vac
Frequency: 50/60 Hz
Dimmable: No
Power factor (PF): 0.95
Operating temperature: -25°C / +35°C
LED Warranty
G5h24: Full Guarantee
5 years
(24h/24h) Without limitations on the duration of use for the first year, provided the observance of the installation conditions.
European Directives
2009/125/EC * Ecodesign
2011/65/EU * RoHS
2012/19/EU * RAEE
2014/30/EU * EMC
2014/35/EU * LVD
2015/863 * Amending RoHS
2017/1369 * Regulation for Energy Labelling
2019/2015 * Regulation for Energy Labelling
2019/2020 * Regulation for Ecodesign
2021/340 * Amending Reg. Energy Labelling
2021/341 * Amending Reg. Ecodesign
Product standards
CEI EN 55015:2020 (+A11:2020)
CEI EN 60598-1:2022
CEI EN 60598-2-1:2022
CEI EN 61000-3-2:2019 (+A1:2021)
CEI EN 61000-3-3:2014 (+EC1:2014/+EC2:2016/+A1:2021/+A2:2022)
CEI EN 61547:2010
CEI EN 62031:2021 (+A11:2022)
CEI EN 62471:2010
IEC/TR 62471-2:2009
CEI EN 62493:2015
CEI 34-141:2014
Logistics data
Item net weight: 410 gr
Barcode single item: 8011905335823
Minimum packaging: 1 / 10
Other Infotech
Flicker Free: Yes
TU60L130-W - UNO - TRACK LIGHT
Typology: Professional LED projectors for three phase track mounting. Complete with power selection, colour temperature selection and zoom option for spot or wide beam selection. Selectable powers: 10W, 15W, 20W. One luminaire replaces 27 configurations and solves all spot or wide-beam lighting needs. Adjustable from 0° to -90° on the vertical plane and 350° on the horizontal plane. Electronic power supply integrated in the track adapter. Features: Two models with 3 selectable powers. Light colour selector on luminaire body: 2700K-3500K-4000K. Adjustable 'zoom' optical system for a continuously variable beam from spot 24° to flood 60°. Installation: Mounting on 3 phases electrical tracks; fixtures equipped with a safety lock to fix to the tracks. Material: Die-cast painted aluminium body; black or white colour. Beam: High efficiency Ra>90 LED Chip on Board. Notes: Do not use with dimmer. Characteristic data - Power: 20 W; Beam: 36°; Dimmable: No; Input: 220-240 Vac; Base: Eurostandard; IP: 20; Flux: 2350 lm; Axis: 6000 cd; PF: 0.95; UGR: <19; Tc: 3000 K; Ra: 90; LED Warranty: G5h24; RG: RG1; Color: White. Dimensional characteristics - Dimensiones; L: 157 mm; ø: 60 mm; H: 133 mm. Lighting and photometric features - Beam opening: 36°; Flux: 2350 lm; Axis: 6000 cd; CCT nominal colour temperature: 3000 K; Colour of the light: Warm light; Colour rendering index: 90; Lifespan: 50000 h; LED lifespan: L70B20; Trigger time: <0,2 s; Heating time up to 60% of full efficiency: Instant Full Light; UGR: <19. Electrical characteristics - Rated power: 20 W; Input voltage: 220-240 Vac; Frequency: 50/60 Hz; Dimmable: No; Power factor (PF): 0.95; Operating temperature: -25°C / +35°C. LED Warranty - G5h24: Full Guarantee ; 5 years ; (24h/24h) Without limitations on the duration of use for the first year, provided the observance of the installation conditions. European Directives - 2009/125/EC * Ecodesign; 2011/65/EU * RoHS; 2012/19/EU * RAEE; 2014/30/EU * EMC; 2014/35/EU * LVD; 2015/863 * Amending RoHS; 2017/1369 * Regulation for Energy Labelling; 2019/2015 * Regulation for Energy Labelling; 2019/2020 * Regulation for Ecodesign; 2021/340 * Amending Reg. Energy Labelling; 2021/341 * Amending Reg. Ecodesign. Product standards - CEI EN 55015:2020 (+A11:2020); CEI EN 60598-1:2022; CEI EN 60598-2-1:2022; CEI EN 61000-3-2:2019 (+A1:2021); CEI EN 61000-3-3:2014 (+EC1:2014/+EC2:2016/+A1:2021/+A2:2022); CEI EN 61547:2010; CEI EN 62031:2021 (+A11:2022); CEI EN 62471:2010; IEC/TR 62471-2:2009; CEI EN 62493:2015; CEI 34-141:2014. Logistics data - Item net weight: 410 gr; Barcode single item: 8011905335823; Minimum packaging: 1 / 10. Other Infotech - Flicker Free: Yes.
