Typology
Professional LED projectors for three phase track mounting.
Complete with power selection, colour temperature selection and zoom option for spot or wide beam selection.
Selectable powers: 10W, 15W, 20W.
One luminaire replaces 27 configurations and solves all spot or wide-beam lighting needs.
Adjustable from 0° to -90° on the vertical plane and 350° on the horizontal plane.
Electronic power supply integrated in the track adapter.
Features
Two models with 3 selectable powers.
Light colour selector on luminaire body: 2700K-3500K-4000K.
Adjustable 'zoom' optical system for a continuously variable beam from spot 24° to flood 60°.
Installation
Mounting on 3 phases electrical tracks; fixtures equipped with a safety lock to fix to the tracks.
Material
Die-cast painted aluminium body; black or white colour.
Beam
High efficiency Ra>90 LED Chip on Board.
Notes
Do not use with dimmer.
Characteristic data
Dimensional characteristics
Lighting and photometric features
CCT nominal colour temperature
3000 K
Colour of the light
Warm light
Heating time up to 60% of full efficiency
Instant Full Light
Electrical characteristics
Operating temperature
-25°C / +35°C
Photometry
Other Infotech
LED Warranty
G5h24
Full Guarantee
5 years
(24h/24h) Without limitations on the duration of use for the first year, provided the observance of the installation conditions.
European Directives
2009/125/EC * Ecodesign
2011/65/EU * RoHS
2012/19/EU * RAEE
2014/30/EU * EMC
2014/35/EU * LVD
2015/863 * Amending RoHS
2017/1369 * Regulation for Energy Labelling
2019/2015 * Regulation for Energy Labelling
2019/2020 * Regulation for Ecodesign
2021/340 * Amending Reg. Energy Labelling
2021/341 * Amending Reg. Ecodesign
Product standards
CEI EN 55015:2020 (+A11:2020)
CEI EN 60598-1:2022
CEI EN 60598-2-1:2022
CEI EN 61000-3-2:2019 (+A1:2021)
CEI EN 61000-3-3:2014 (+EC1:2014/+EC2:2016/+A1:2021/+A2:2022)
CEI EN 61547:2010
CEI EN 62031:2021 (+A11:2022)
CEI EN 62471:2010
IEC/TR 62471-2:2009
CEI EN 62493:2015
CEI 34-141:2014
Logistics data
Barcode single item
8011905335861
Product sheet
Tender text
Extended
Compact

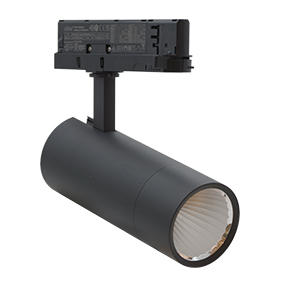

TU70L130-B - UNO - TRACK LIGHT
Typology
Professional LED projectors for three phase track mounting.
Complete with power selection, colour temperature selection and zoom option for spot or wide beam selection.
Selectable powers: 10W, 15W, 20W.
One luminaire replaces 27 configurations and solves all spot or wide-beam lighting needs.
Adjustable from 0° to -90° on the vertical plane and 350° on the horizontal plane.
Electronic power supply integrated in the track adapter.
Features
Two models with 3 selectable powers.
Light colour selector on luminaire body: 2700K-3500K-4000K.
Adjustable 'zoom' optical system for a continuously variable beam from spot 24° to flood 60°.
Installation
Mounting on 3 phases electrical tracks; fixtures equipped with a safety lock to fix to the tracks.
Material
Die-cast painted aluminium body; black or white colour.
Beam
High efficiency Ra>90 LED Chip on Board.
Notes
Do not use with dimmer.
Characteristic data
Power: 29 W
Beam: 36°
Dimmable: No
Input: 220-240 Vac
Base: Eurostandard
IP: 20
Flux: 3200 lm
Axis: 7500 cd
PF: 0.95
UGR: <19
Tc: 3000 K
Ra: 90
LED Warranty: G5h24
RG: RG1
Color: Black
Dimensional characteristics
Dimensiones
L: 157 mm
ø: 70 mm
H: 177 mm

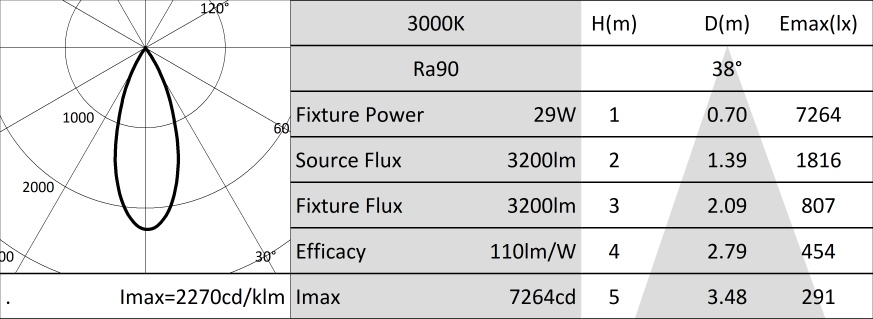

Lighting and photometric features
Beam opening: 36°
Flux: 3200 lm
Axis: 7500 cd
CCT nominal colour temperature: 3000 K
Colour of the light: Warm light
Colour rendering index: 90
Lifespan: 50000 h
LED lifespan: L70B20
Trigger time: <0,2 s
Heating time up to 60% of full efficiency: Instant Full Light
UGR: <19
Electrical characteristics
Rated power: 29 W
Input voltage: 220-240 Vac
Frequency: 50/60 Hz
Dimmable: No
Power factor (PF): 0.95
Operating temperature: -25°C / +35°C
LED Warranty
G5h24: Full Guarantee
5 years
(24h/24h) Without limitations on the duration of use for the first year, provided the observance of the installation conditions.
European Directives
2009/125/EC * Ecodesign
2011/65/EU * RoHS
2012/19/EU * RAEE
2014/30/EU * EMC
2014/35/EU * LVD
2015/863 * Amending RoHS
2017/1369 * Regulation for Energy Labelling
2019/2015 * Regulation for Energy Labelling
2019/2020 * Regulation for Ecodesign
2021/340 * Amending Reg. Energy Labelling
2021/341 * Amending Reg. Ecodesign
Product standards
CEI EN 55015:2020 (+A11:2020)
CEI EN 60598-1:2022
CEI EN 60598-2-1:2022
CEI EN 61000-3-2:2019 (+A1:2021)
CEI EN 61000-3-3:2014 (+EC1:2014/+EC2:2016/+A1:2021/+A2:2022)
CEI EN 61547:2010
CEI EN 62031:2021 (+A11:2022)
CEI EN 62471:2010
IEC/TR 62471-2:2009
CEI EN 62493:2015
CEI 34-141:2014
Logistics data
Item net weight: 573 gr
Barcode single item: 8011905335861
Minimum packaging: 1 / 10
Other Infotech
Flicker Free: Yes
TU70L130-B - UNO - TRACK LIGHT
Typology: Professional LED projectors for three phase track mounting. Complete with power selection, colour temperature selection and zoom option for spot or wide beam selection. Selectable powers: 10W, 15W, 20W. One luminaire replaces 27 configurations and solves all spot or wide-beam lighting needs. Adjustable from 0° to -90° on the vertical plane and 350° on the horizontal plane. Electronic power supply integrated in the track adapter. Features: Two models with 3 selectable powers. Light colour selector on luminaire body: 2700K-3500K-4000K. Adjustable 'zoom' optical system for a continuously variable beam from spot 24° to flood 60°. Installation: Mounting on 3 phases electrical tracks; fixtures equipped with a safety lock to fix to the tracks. Material: Die-cast painted aluminium body; black or white colour. Beam: High efficiency Ra>90 LED Chip on Board. Notes: Do not use with dimmer. Characteristic data - Power: 29 W; Beam: 36°; Dimmable: No; Input: 220-240 Vac; Base: Eurostandard; IP: 20; Flux: 3200 lm; Axis: 7500 cd; PF: 0.95; UGR: <19; Tc: 3000 K; Ra: 90; LED Warranty: G5h24; RG: RG1; Color: Black. Dimensional characteristics - Dimensiones; L: 157 mm; ø: 70 mm; H: 177 mm. Lighting and photometric features - Beam opening: 36°; Flux: 3200 lm; Axis: 7500 cd; CCT nominal colour temperature: 3000 K; Colour of the light: Warm light; Colour rendering index: 90; Lifespan: 50000 h; LED lifespan: L70B20; Trigger time: <0,2 s; Heating time up to 60% of full efficiency: Instant Full Light; UGR: <19. Electrical characteristics - Rated power: 29 W; Input voltage: 220-240 Vac; Frequency: 50/60 Hz; Dimmable: No; Power factor (PF): 0.95; Operating temperature: -25°C / +35°C. LED Warranty - G5h24: Full Guarantee ; 5 years ; (24h/24h) Without limitations on the duration of use for the first year, provided the observance of the installation conditions. European Directives - 2009/125/EC * Ecodesign; 2011/65/EU * RoHS; 2012/19/EU * RAEE; 2014/30/EU * EMC; 2014/35/EU * LVD; 2015/863 * Amending RoHS; 2017/1369 * Regulation for Energy Labelling; 2019/2015 * Regulation for Energy Labelling; 2019/2020 * Regulation for Ecodesign; 2021/340 * Amending Reg. Energy Labelling; 2021/341 * Amending Reg. Ecodesign. Product standards - CEI EN 55015:2020 (+A11:2020); CEI EN 60598-1:2022; CEI EN 60598-2-1:2022; CEI EN 61000-3-2:2019 (+A1:2021); CEI EN 61000-3-3:2014 (+EC1:2014/+EC2:2016/+A1:2021/+A2:2022); CEI EN 61547:2010; CEI EN 62031:2021 (+A11:2022); CEI EN 62471:2010; IEC/TR 62471-2:2009; CEI EN 62493:2015; CEI 34-141:2014. Logistics data - Item net weight: 573 gr; Barcode single item: 8011905335861; Minimum packaging: 1 / 10. Other Infotech - Flicker Free: Yes.
