TU80L130-WNew
UNO - TRACK LIGHT
Product available in:
Share
Ask info
Datasheet
Download
Typology

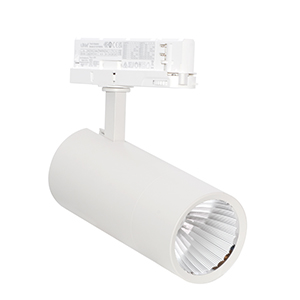

Professional LED projectors for three phase track mounting.
Complete with power selection, colour temperature selection and zoom option for spot or wide beam selection.
Selectable powers: 10W, 15W, 20W.
One luminaire replaces 27 configurations and solves all spot or wide-beam lighting needs.
Adjustable from 0° to -90° on the vertical plane and 350° on the horizontal plane.
Electronic power supply integrated in the track adapter.

Features
Two models with 3 selectable powers.
Light colour selector on luminaire body: 2700K-3500K-4000K.
Adjustable 'zoom' optical system for a continuously variable beam from spot 24° to flood 60°.

Installation
Mounting on 3 phases electrical tracks; fixtures equipped with a safety lock to fix to the tracks.

Material
Die-cast painted aluminium body; black or white colour.

Beam
High efficiency Ra>90 LED Chip on Board.

Notes
Do not use with dimmer.
220-240 Vac
Ra 90
50000 h
L70B20
IP20
Eurostandard
-25°C
+35°C
Risk
Group 1
UGR <19
36°
G5
h24
Characteristic data
Power
36 W
Beam
36°
Dimmable
No
Input
220-240 Vac
Base
Eurostandard
IP
20
Flux
4050 lm
Axis
11250 cd
PF
0.95
UGR
<19
Tc
3000 K
Ra
90
LED Warranty
G5h24
RG
RG1
Color
White

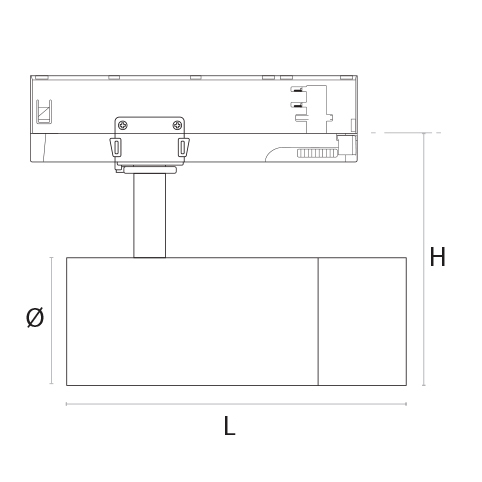

Dimensional characteristics
L
157 mm
ø
80 mm
H
190 mm
Lighting and photometric features
Beam opening
36°
Flux
4050 lm
Axis
11250 cd
CCT nominal colour temperature
3000 K
Colour of the light
Warm light
Colour rendering index
90
Lifespan
50000 h
LED lifespan
L70B20
Trigger time
<0,2 s
Heating time up to 60% of full efficiency
Instant Full Light
UGR
<19
Electrical characteristics
Rated power
36 W
Input voltage
220-240 Vac
Frequency
50/60 Hz
Dimmable
No
Power factor (PF)
0.95
Operating temperature
-25°C / +35°C
Photometry
Other Infotech
Flicker Free
Yes
LED Warranty
G5h24
Full Guarantee
5 years
(24h/24h) Without limitations on the duration of use for the first year, provided the observance of the installation conditions.
European Directives
2009/125/EC * Ecodesign
2011/65/EU * RoHS
2012/19/EU * RAEE
2014/30/EU * EMC
2014/35/EU * LVD
2015/863 * Amending RoHS
2017/1369 * Regulation for Energy Labelling
2019/2015 * Regulation for Energy Labelling
2019/2020 * Regulation for Ecodesign
2021/340 * Amending Reg. Energy Labelling
2021/341 * Amending Reg. Ecodesign
Product standards
CEI EN 55015:2020 (+A11:2020)
CEI EN 60598-1:2022
CEI EN 60598-2-1:2022
CEI EN 61000-3-2:2019 (+A1:2021)
CEI EN 61000-3-3:2014 (+EC1:2014/+EC2:2016/+A1:2021/+A2:2022)
CEI EN 61547:2010
CEI EN 62031:2021 (+A11:2022)
CEI EN 62471:2010
IEC/TR 62471-2:2009
CEI EN 62493:2015
CEI 34-141:2014
Logistics data
Item net weight
723 gr
Barcode single item
8011905335892
Minimum packaging
1 / 10
