Features
Aluminium profile for recessed installation.
Aluminium profiles allow for a more stable installation, in case of linear installations.
Recommended for indoor and outdoor (protected) applications and for high power strips in order to better heat dissipation.
CAN BE USED WITH LED STRIPS WITH MAXIMUM WIDTH:
30 mm
MAXIMUM POWER:
42W/m
Installation
Recessed.
Steel spring mounting system for recessed ceiling installation from a minimum of 5mm.
Material
Profile in aluminum alloy 6060/6063, anodized 15/20 microns.
UV resistant PC lens.
Accessories
Transparent lenses with 40° beam angle available, opal cover for replacements, and a continuous flexible 20 m lens for installations without visible interruptions.
Packaging
Packaging of the aluminium‑colour profile in kit form (code ending with “KIT”): minimum package of 5 bars complete with opal diffuser, 5 pairs of end caps, and 5 pairs of clips.
Characteristic data

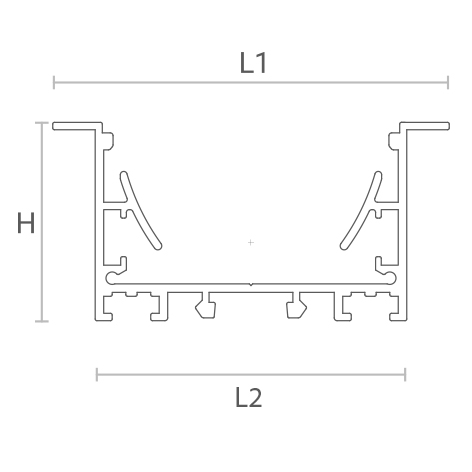

Dimensional characteristics
L
2000 mm
L1
70 mm
L2
55 mm
H
35 mm
European Directives
2011/65/EU * RoHS
2015/863 * Amending RoHS
Logistics data
Barcode single item
8011905331382
Number of pieces multiple pack
5
Product sheet
Tender text
Extended
Compact
P055-200-KIT - RECESSED PROFILES: P055
Features
Aluminium profile for recessed installation.
Aluminium profiles allow for a more stable installation, in case of linear installations.
Recommended for indoor and outdoor (protected) applications and for high power strips in order to better heat dissipation.
CAN BE USED WITH LED STRIPS WITH MAXIMUM WIDTH:
30 mm
MAXIMUM POWER:
42W/m
Installation
Recessed.
Steel spring mounting system for recessed ceiling installation from a minimum of 5mm.
Material
Profile in aluminum alloy 6060/6063, anodized 15/20 microns.
UV resistant PC lens.
Accessories
Transparent lenses with 40° beam angle available, opal cover for replacements, and a continuous flexible 20 m lens for installations without visible interruptions.
Packaging
Packaging of the aluminium‑colour profile in kit form (code ending with “KIT”): minimum package of 5 bars complete with opal diffuser, 5 pairs of end caps, and 5 pairs of clips.
Characteristic data
Color: Grey
Dimensional characteristics
Dimensiones
L: 2000 mm
L1: 70 mm
L2: 55 mm
H: 35 mm
European Directives
2011/65/EU * RoHS
2015/863 * Amending RoHS
Logistics data
Item net weight: 6 gr
Barcode single item: 8011905331382
Number of pieces multiple pack: 5
Minimum order quantity: 1
Minimum packaging: 1 / 5
P055-200-KIT - RECESSED PROFILES: P055
Features: Aluminium profile for recessed installation. Aluminium profiles allow for a more stable installation, in case of linear installations. Recommended for indoor and outdoor (protected) applications and for high power strips in order to better heat dissipation. CAN BE USED WITH LED STRIPS WITH MAXIMUM WIDTH:: 30 mm MAXIMUM POWER:: 42W/m Installation: Recessed. Steel spring mounting system for recessed ceiling installation from a minimum of 5mm. Material: Profile in aluminum alloy 6060/6063, anodized 15/20 microns. UV resistant PC lens. Accessories: Transparent lenses with 40° beam angle available, opal cover for replacements, and a continuous flexible 20 m lens for installations without visible interruptions. Packaging: Packaging of the aluminium‑colour profile in kit form (code ending with “KIT”): minimum package of 5 bars complete with opal diffuser, 5 pairs of end caps, and 5 pairs of clips. Characteristic data - Color: Grey. Dimensional characteristics - Dimensiones; L: 2000 mm; L1: 70 mm; L2: 55 mm; H: 35 mm. European Directives - 2011/65/EU * RoHS; 2015/863 * Amending RoHS. Logistics data - Item net weight: 6 gr; Barcode single item: 8011905331382; Number of pieces multiple pack: 5; Minimum order quantity: 1; Minimum packaging: 1 / 5.
